760308101302

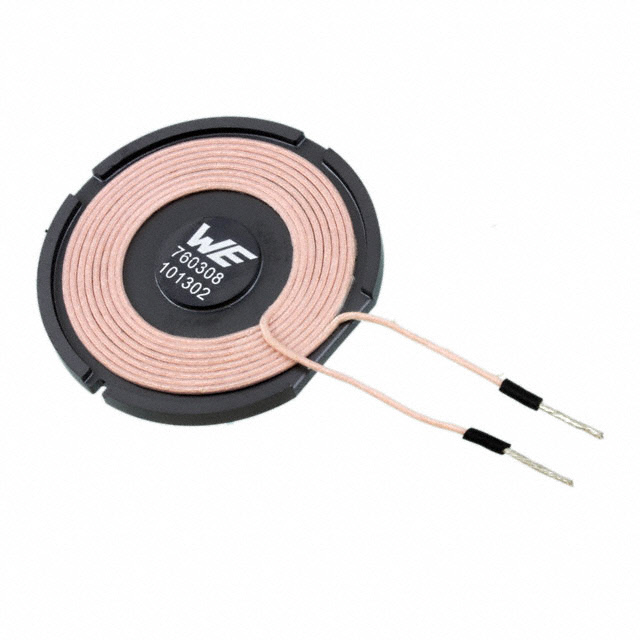

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 760308101302 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 760308101302 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 760308101302 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | TX 1 COIL 1 LAYER 5.3UH 8A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 50 pcs | 84 pcs | 168 pcs | 336 pcs |
|---|---|---|---|---|---|
| $7.244 | $6.849 | $5.795 | $5.005 | $4.215 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 760308101302 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | TX 1 COIL 1 LAYER 5.3UH 8A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8398 pcs | Data sheet | 760308101302 Drawing |
| Category | Inductors, Coils, Chokes | Type | 1 Coil, 1 Layer |
| Tolerance | ±10% | Size / Dimension | 1.97" Dia x 0.19" H (50.0mm x 4.7mm) |
| Series | WE-WPCC | Q @ Freq | 100 @ 125kHz |
| Other Names | 732-6206 | Operating Temperature | -20°C ~ 105°C |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 5.3µH |
| Function | Transmitter | Frequency - Self Resonant | 27MHz |
| Detailed Description | 1 Coil, 1 Layer 5.3µH Wireless Charging Coil Transmitter 33 mOhm | DC Resistance (DCR) | 33 mOhm |
| Current Rating | 8A | Current - Saturation | 10A |
