760308102210

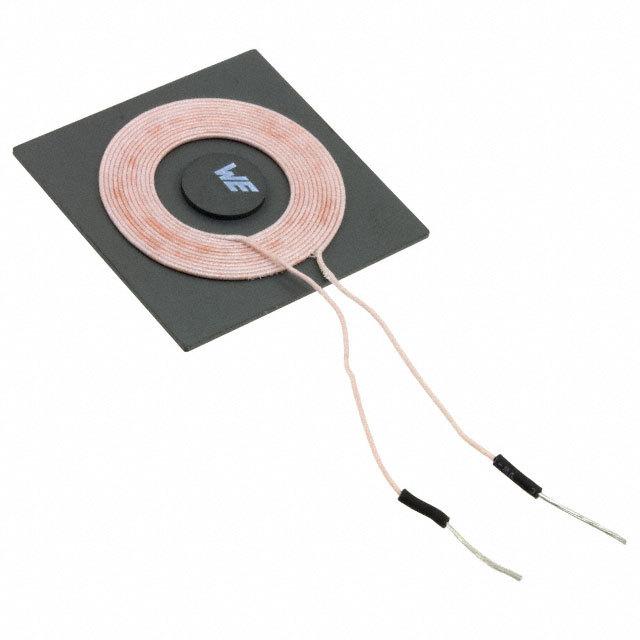

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 760308102210 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 760308102210 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 760308102210 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | RX 1 COIL 1 LAYER 7.5UH 3A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 50 pcs | 100 pcs | 200 pcs | 500 pcs |
|---|---|---|---|---|---|
| $3.943 | $3.67 | $3.366 | $3.163 | $2.92 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 760308102210 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | RX 1 COIL 1 LAYER 7.5UH 3A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11529 pcs | Data sheet | 760308102210 Drawing |
| Category | Inductors, Coils, Chokes | Type | 1 Coil, 1 Layer |
| Tolerance | ±10% | Size / Dimension | 1.46" L x 1.46" W x 0.07" H (37.0mm x 37.0mm x 1.8mm) |
| Series | WE-WPCC | Q @ Freq | 45 @ 125kHz |
| Other Names | 732-5646 | Operating Temperature | -20°C ~ 105°C |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 7.5µH |
| Function | Receiver | Frequency - Self Resonant | 22MHz |
| Detailed Description | 1 Coil, 1 Layer 7.5µH Wireless Charging Coil Receiver 180 mOhm Max | DC Resistance (DCR) | 180 mOhm Max |
| Current Rating | 3A | Current - Saturation | 6A |
