760308101214

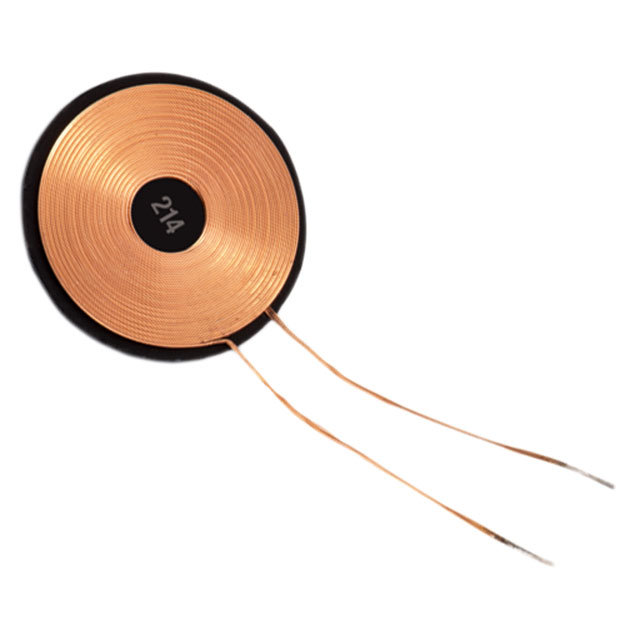

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 760308101214 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 760308101214 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 760308101214 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | RX 1 COIL 1 LAYER 26UH 1.1A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 48 pcs | 96 pcs | 192 pcs |
|---|---|---|---|---|---|
| $2.694 | $2.494 | $2.267 | $2.061 | $1.873 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 760308101214 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | RX 1 COIL 1 LAYER 26UH 1.1A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19652 pcs | Data sheet | 760308101214 Drawing |
| Category | Inductors, Coils, Chokes | Type | 1 Coil, 1 Layer |
| Tolerance | ±10% | Size / Dimension | 0.75" Dia x 0.03" H (19.0mm x 0.8mm) |
| Series | WE-WPCC | Q @ Freq | 25 @ 125kHz |
| Other Names | 732-8240 | Operating Temperature | -20°C ~ 105°C |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 26µH |
| Function | Receiver | Frequency - Self Resonant | 11MHz |
| Detailed Description | 1 Coil, 1 Layer 26µH Wireless Charging Coil Receiver 520 mOhm Max | DC Resistance (DCR) | 520 mOhm Max |
| Current Rating | 1.1A | Current - Saturation | 2A |
