760308101208

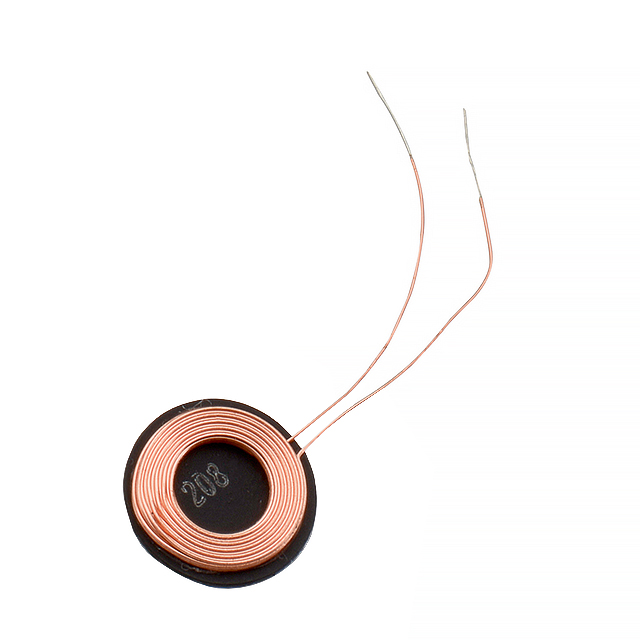

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 760308101208 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 760308101208 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 760308101208 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | RX 1 COIL 1 LAYER 13UH 0.8A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 50 pcs | 100 pcs | 250 pcs | 500 pcs |
|---|---|---|---|---|---|
| $3.607 | $3.409 | $2.885 | $2.491 | $2.098 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 760308101208 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | RX 1 COIL 1 LAYER 13UH 0.8A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18005 pcs | Data sheet | 760308101208 Drawing |
| Category | Inductors, Coils, Chokes | Type | 1 Coil, 1 Layer |
| Tolerance | ±10% | Size / Dimension | 0.39" L x 0.39" W x 0.07" H (10.0mm x 10.0mm x 1.68mm) |
| Series | WE-WPCC | Q @ Freq | 17 @ 125kHz |
| Other Names | 732-6205 | Operating Temperature | -20°C ~ 105°C |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 13µH |
| Function | Receiver | Frequency - Self Resonant | 26MHz |
| Detailed Description | 1 Coil, 1 Layer 13µH Wireless Charging Coil Receiver 400 mOhm | DC Resistance (DCR) | 400 mOhm |
| Current Rating | 0.8A | Current - Saturation | 2A |
