760308102207

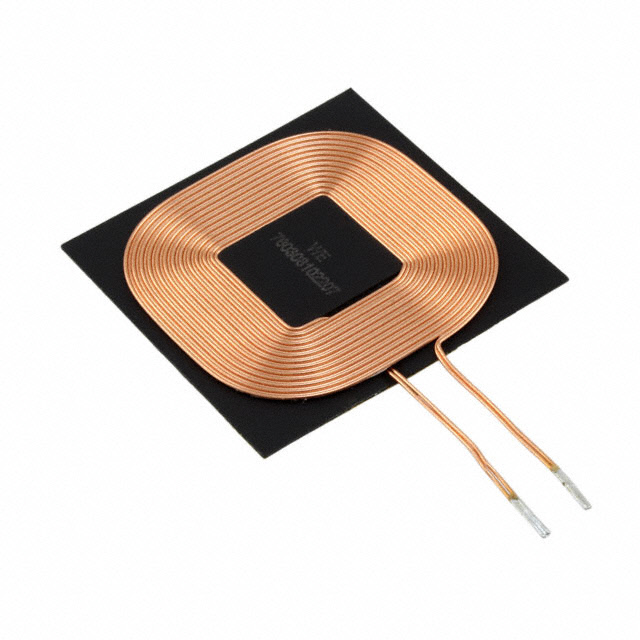

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 760308102207 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 760308102207 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 760308102207 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | RX 1 COIL 1 LAYER 8UH 5A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 50 pcs | 100 pcs | 250 pcs | 336 pcs |
|---|---|---|---|---|---|
| $3.491 | $3.299 | $2.792 | $2.411 | $2.03 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 760308102207 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | RX 1 COIL 1 LAYER 8UH 5A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17354 pcs | Data sheet | 760308102207 Drawing |
| Category | Inductors, Coils, Chokes | Type | 1 Coil, 1 Layer |
| Tolerance | ±10% | Size / Dimension | 1.57" L x 1.57" W x 0.05" H (40mm x 40mm x 1.2mm) |
| Series | WE-WPCC | Q @ Freq | 30 @ 125kHz |
| Other Names | 732-6209 | Operating Temperature | -20°C ~ 105°C |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 8µH |
| Function | Receiver | Frequency - Self Resonant | 16MHz |
| Detailed Description | 1 Coil, 1 Layer 8µH Wireless Charging Coil Receiver 60 mOhm | DC Resistance (DCR) | 60 mOhm |
| Current Rating | 5A | Current - Saturation | 10A |
