760308101141

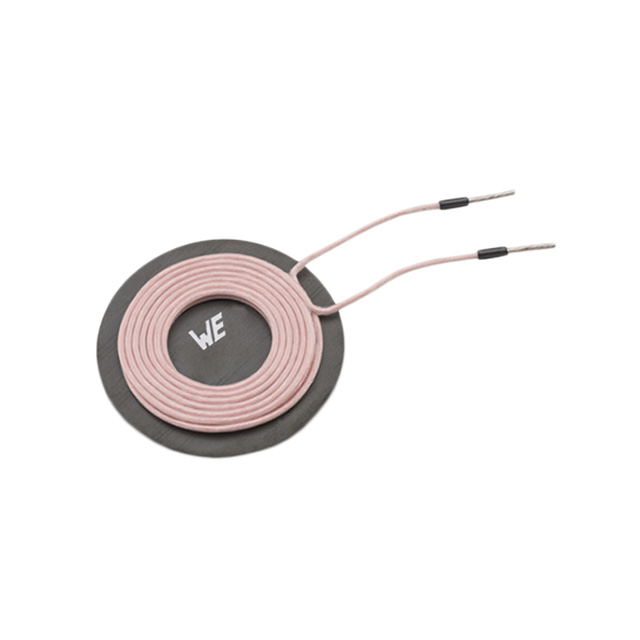

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 760308101141 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 760308101141 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 760308101141 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | WE-WPCC WIRELESS POWER CHARGING |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 84 pcs | |
|---|---|---|---|---|---|
| $6.092 | $5.297 | $4.815 | $4.458 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 760308101141 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | WE-WPCC WIRELESS POWER CHARGING | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8216 pcs | Data sheet | 760308101141 Drawing |
| Category | Inductors, Coils, Chokes | Type | 1 Coil, 1 Layer |
| Tolerance | ±10% | Size / Dimension | 1.97" Dia x 0.20" H (50.0mm x 5.0mm) |
| Series | WE-WPCC | Q @ Freq | 220 @ 125kHz |
| Other Names | 732-11701 | Operating Temperature | -20°C ~ 105°C |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 10µH |
| Function | Transmitter | Frequency - Self Resonant | 11MHz |
| Detailed Description | 1 Coil, 1 Layer 10µH Wireless Charging Coil Transmitter 30 mOhm Max | DC Resistance (DCR) | 30 mOhm Max |
| Current Rating | 9A | Current - Saturation | 16A |
