760308101216

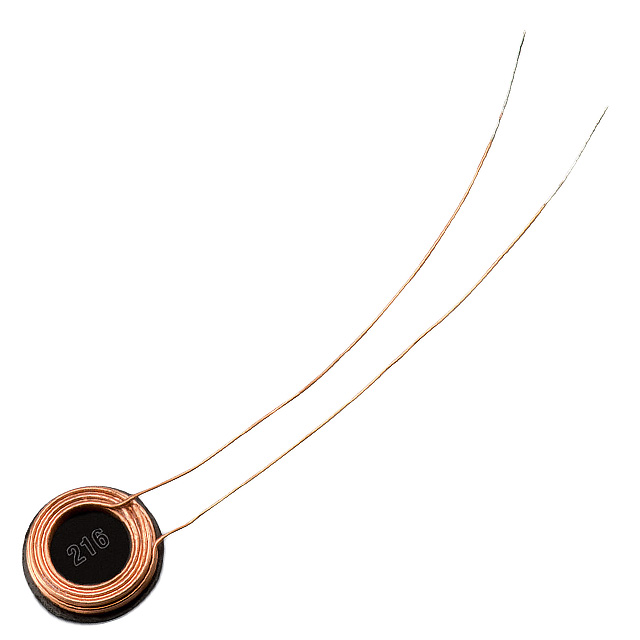

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 760308101216 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 760308101216 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 760308101216 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | RX 1 COIL 1 LAYER 7.2UH 500MA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 60 pcs | 120 pcs | |
|---|---|---|---|---|---|
| $2.933 | $2.796 | $2.581 | $2.346 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 760308101216 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | RX 1 COIL 1 LAYER 7.2UH 500MA | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16373 pcs | Data sheet | 760308101216 Drawing |
| Category | Inductors, Coils, Chokes | Type | 1 Coil, 1 Layer |
| Tolerance | ±10% | Size / Dimension | 0.24" Dia x 0.08" H (6.0mm x 2.0mm) |
| Series | WE-WPCC | Q @ Freq | 10 @ 125kHz |
| Other Names | 732-9673 | Operating Temperature | -20°C ~ 105°C |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 7.2µH |
| Function | Receiver | Frequency - Self Resonant | 32MHz |
| Detailed Description | 1 Coil, 1 Layer 7.2µH Wireless Charging Coil Receiver 440 mOhm Max | DC Resistance (DCR) | 440 mOhm Max |
| Current Rating | 500mA | Current - Saturation | 1A |
