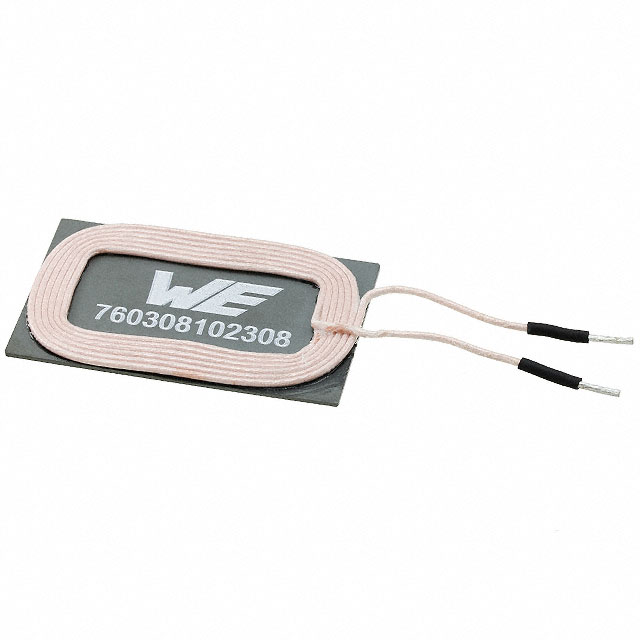

760308102308
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 760308102308 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 760308102308 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 760308102308 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | WE-WPCC WIRELESS POWER CHARGING |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 50 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $5.661 | $5.285 | $4.718 | |||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $4.152 | $3.775 | $3.397 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 760308102308 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | WE-WPCC WIRELESS POWER CHARGING | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9439 pcs | Data sheet | 760308102308 Drawing |
| Category | Inductors, Coils, Chokes | Type | 1 Coil, 1 Layer |
| Tolerance | ±10% | Size / Dimension | 1.97" L x 1.18" W x 0.14" H (50.00mm x 30.00mm x 3.50mm) |
| Series | WE-WPCC | Q @ Freq | 60 @ 125kHz |
| Other Names | 732-11538 | Operating Temperature | -20°C ~ 105°C |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 3µH |
| Function | Transmitter | Frequency - Self Resonant | 27MHz |
| Detailed Description | 1 Coil, 1 Layer 3µH Wireless Charging Coil Transmitter 35 mOhm Max | DC Resistance (DCR) | 35 mOhm Max |
| Current Rating | 8.5A | Current - Saturation | 15A |
