760308101219

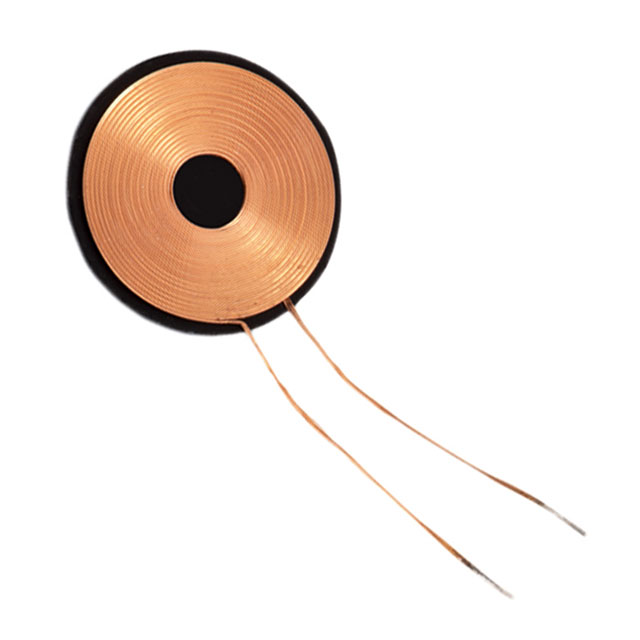

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 760308101219 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 760308101219 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 760308101219 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | RX 1 COIL 1 LAYER 11.8UH 700MA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 32 pcs | 64 pcs | 128 pcs |
|---|---|---|---|---|---|
| $2.682 | $2.541 | $2.343 | $2.144 | $1.866 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 760308101219 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | RX 1 COIL 1 LAYER 11.8UH 700MA | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18993 pcs | Data sheet | 760308101219 Drawing |
| Category | Inductors, Coils, Chokes | Type | 1 Coil, 1 Layer |
| Tolerance | ±10% | Size / Dimension | 0.59" Dia x 0.02" H (15.0mm x 0.6mm) |
| Series | WE-WPCC | Q @ Freq | 13 @ 125kHz |
| Other Names | 732-9675 | Operating Temperature | -20°C ~ 105°C |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 11.8µH |
| Function | Receiver | Frequency - Self Resonant | 22MHz |
| Detailed Description | 1 Coil, 1 Layer 11.8µH Wireless Charging Coil Receiver 750 mOhm Max | DC Resistance (DCR) | 750 mOhm Max |
| Current Rating | 700mA | Current - Saturation | 1.5A |
