760308103146

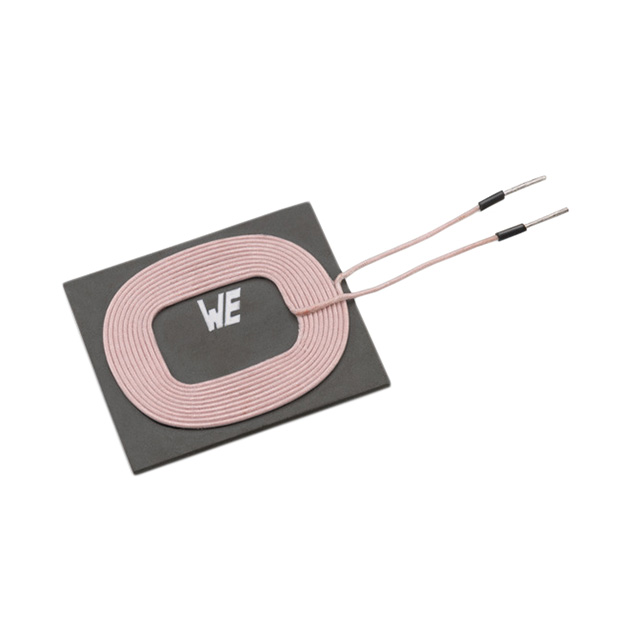

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 760308103146 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 760308103146 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 760308103146 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | WE-WPCC WIRELESS POWER CHARGING |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 56 pcs | 126 pcs | |
|---|---|---|---|---|---|
| $6.006 | $5.268 | $4.703 | $4.278 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 760308103146 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | WE-WPCC WIRELESS POWER CHARGING | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8527 pcs | Data sheet | 760308103146 Drawing |
| Category | Inductors, Coils, Chokes | Type | 1 Coil, 1 Layer |
| Tolerance | ±10% | Size / Dimension | 2.01" L x 1.85" W x 0.18" H (51.0mm x 47.0mm x 4.5mm) |
| Series | WE-WPCC | Q @ Freq | 140 @ 125kHz |
| Other Names | 732-11793 | Operating Temperature | -20°C ~ 60°C |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 8.5µH |
| Function | Transmitter | Frequency - Self Resonant | 11MHz |
| Detailed Description | 1 Coil, 1 Layer 8.5µH Wireless Charging Coil Transmitter 56 mOhm Max | DC Resistance (DCR) | 56 mOhm Max |
| Current Rating | 8A | Current - Saturation | 16A |
