760308103202

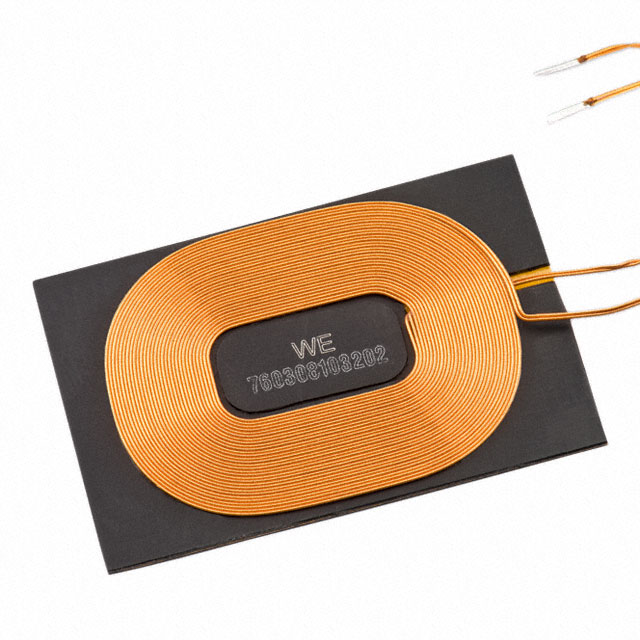

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 760308103202 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 760308103202 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 760308103202 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | RX 1 COIL 1 LAYER 12UH 2.9A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | ||
|---|---|---|---|---|---|
| $2.142 | $1.983 | $1.584 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 760308103202 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | RX 1 COIL 1 LAYER 12UH 2.9A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23211 pcs | Data sheet | 760308103202 WE-WPCC Receiver Coil |
| Category | Inductors, Coils, Chokes | Type | 1 Coil, 1 Layer |
| Tolerance | ±10% | Size / Dimension | 1.89" L x 1.26" W x 0.04" H (48.0mm x 32mm x 1mm) |
| Series | WE-WPCC | Q @ Freq | 33 @ 125kHz |
| Other Names | 1297-1114 1297-1114-ND 732-5257 |
Operating Temperature | -20°C ~ 105°C |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 12µH |
| Function | Receiver | Frequency - Self Resonant | 25MHz |
| Detailed Description | 1 Coil, 1 Layer 12µH Wireless Charging Coil Receiver 160 mOhm | DC Resistance (DCR) | 160 mOhm |
| Current Rating | 2.9A | Current - Saturation | 6A |
