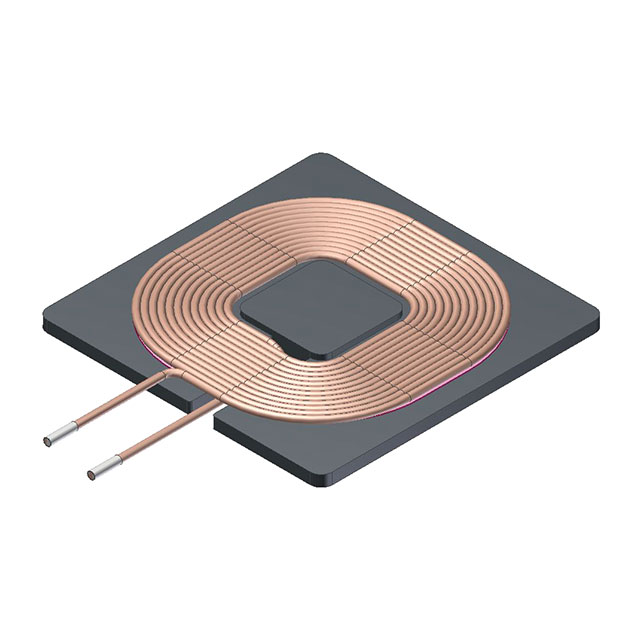

WT525225-12F2-MA2-G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy WT525225-12F2-MA2-G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy WT525225-12F2-MA2-G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | WT525225-12F2-MA2-G |
|---|---|
| Manufacturer | TDK Corporation |
| Description | TX 1 COIL, 1 LYR 10.5UH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 288 pcs | 576 pcs | 1152 pcs |
|---|---|---|---|---|---|
| $3.258 | $2.897 | $2.173 | $2.10 | $1.927 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | WT525225-12F2-MA2-G | Manufacturer | TDK Corporation |
|---|---|---|---|
| Description | TX 1 COIL, 1 LYR 10.5UH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17294 pcs | Data sheet | WT525225-12F2-MA2-G Spec |
| Category | Inductors, Coils, Chokes | Type | 1 Coil, 1 Layer |
| Tolerance | - | Size / Dimension | 2.05" L x 2.05" W x 0.15" H (52.0mm x 52.0mm x 3.7mm) |
| Series | WT | Q @ Freq | - |
| Other Names | 445-175301 | Operating Temperature | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | 10.5µH | Function | Transmitter |
| Frequency - Self Resonant | - | Detailed Description | 1 Coil, 1 Layer 10.5µH Wireless Charging Coil Transmitter 60 mOhm |
| DC Resistance (DCR) | 60 mOhm | Current Rating | - |
| Current - Saturation | - |
