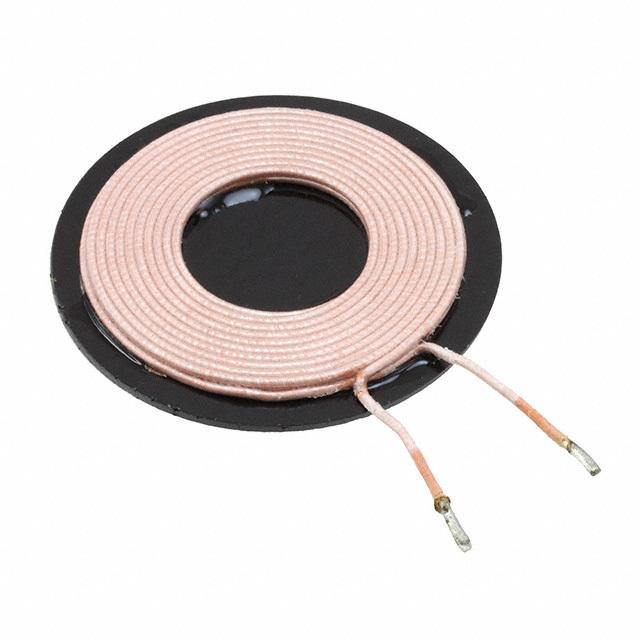

WT505090-20K2-A10-G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy WT505090-20K2-A10-G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy WT505090-20K2-A10-G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | WT505090-20K2-A10-G |
|---|---|
| Manufacturer | TDK Corporation |
| Description | TX 1 COIL 2 LAYER 24UH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 108 pcs | 540 pcs | 1080 pcs |
|---|---|---|---|---|---|
| $2.802 | $2.522 | $1.794 | $1.682 | $1.57 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | WT505090-20K2-A10-G | Manufacturer | TDK Corporation |
|---|---|---|---|
| Description | TX 1 COIL 2 LAYER 24UH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20735 pcs | Data sheet | WT-505090-20K2-A10-G DatasheetWT505090-20K2-A10x Spec |
| Category | Inductors, Coils, Chokes | Type | 1 Coil, 2 Layer |
| Tolerance | - | Size / Dimension | 1.97" Dia x 0.15" H (50.0mm x 3.8mm) |
| Series | WT | Q @ Freq | - |
| Other Names | 445-16094 | Operating Temperature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 24µH |
| Function | Transmitter | Frequency - Self Resonant | - |
| Detailed Description | 1 Coil, 2 Layer 24µH Wireless Charging Coil Transmitter 100 mOhm | DC Resistance (DCR) | 100 mOhm |
| Current Rating | - | Current - Saturation | - |
