WT545490-11K2-FS

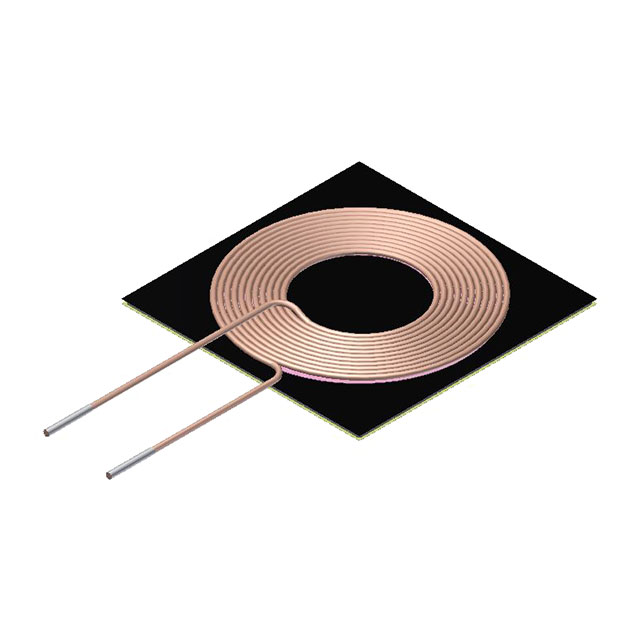

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy WT545490-11K2-FS with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy WT545490-11K2-FS with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | WT545490-11K2-FS |
|---|---|
| Manufacturer | TDK Corporation |
| Description | TX 1 COIL, 1 LYR 8.9UH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 176 pcs | 528 pcs | 1056 pcs |
|---|---|---|---|---|---|
| $4.00 | $3.555 | $2.755 | $2.577 | $2.364 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | WT545490-11K2-FS | Manufacturer | TDK Corporation |
|---|---|---|---|
| Description | TX 1 COIL, 1 LYR 8.9UH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15065 pcs | Data sheet | WT545490-11K2-FS Spec |
| Category | Inductors, Coils, Chokes | Type | 1 Coil, 1 Layer |
| Tolerance | - | Size / Dimension | 2.13" L x 2.13" W x 0.13" H (54.0mm x 54.0mm x 3.3mm) |
| Series | WT | Q @ Freq | 104 @ 100kHz |
| Other Names | 445-175303 | Operating Temperature | - |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | 8.9µH | Function | Transmitter |
| Frequency - Self Resonant | - | Detailed Description | 1 Coil, 1 Layer 8.9µH Wireless Charging Coil Transmitter 60 mOhm |
| DC Resistance (DCR) | 60 mOhm | Current Rating | - |
| Current - Saturation | - |
