Home > Products > Inductors, Coils, Chokes > Wireless Charging Coils > 760308104119

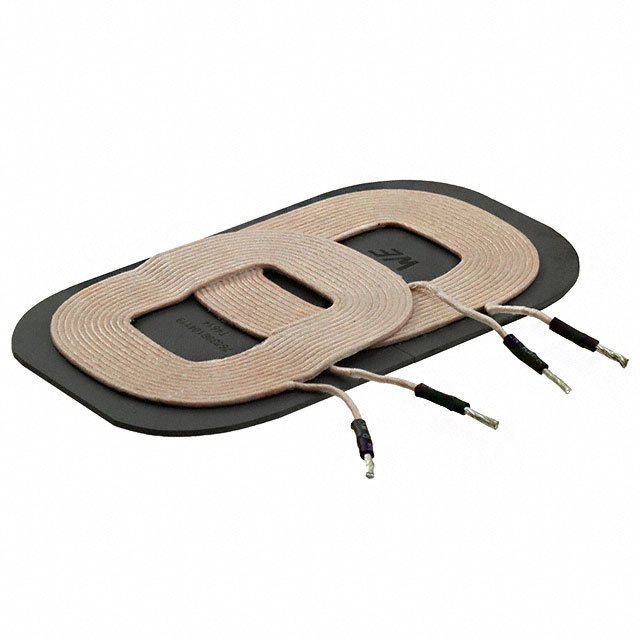

760308104119

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 760308104119 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	760308104119
Manufacturer	Wurth Electronics
Description	TX 2 COIL 1 LAYER 12UH 11.5UH 8A
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 7900 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	50 pcs	100 pcs	500 pcs
Reference Price (In US Dollars)	$6.422	$6.024	$5.627	$5.191	$4.755

Product parameter
Data sheet

Product parameter

Part Number	760308104119	Manufacturer	Wurth Electronics
Description	TX 2 COIL 1 LAYER 12UH 11.5UH 8A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7900 pcs	Data sheet	Wireless Power Transfer Flyer 760308104119 WE-WPCC Power Array
Category	Inductors, Coils, Chokes	Type	2 Coil, 1 Layer
Tolerance	±10%	Size / Dimension	3.48" L x 2.07" W x 0.14" H (88.50mm x 52.50mm x 3.50mm)
Series	WE-WPCC	Q @ Freq	130 @ 125kHz
Other Names	732-5718	Operating Temperature	-20°C ~ 105°C
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	8 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	12µH, 11.5µH
Function	Transmitter	Frequency - Self Resonant	12MHz
Detailed Description	2 Coil, 1 Layer 12µH, 11.5µH Wireless Charging Coil Transmitter 56 mOhm	DC Resistance (DCR)	56 mOhm
Current Rating	8A	Current - Saturation	12A
