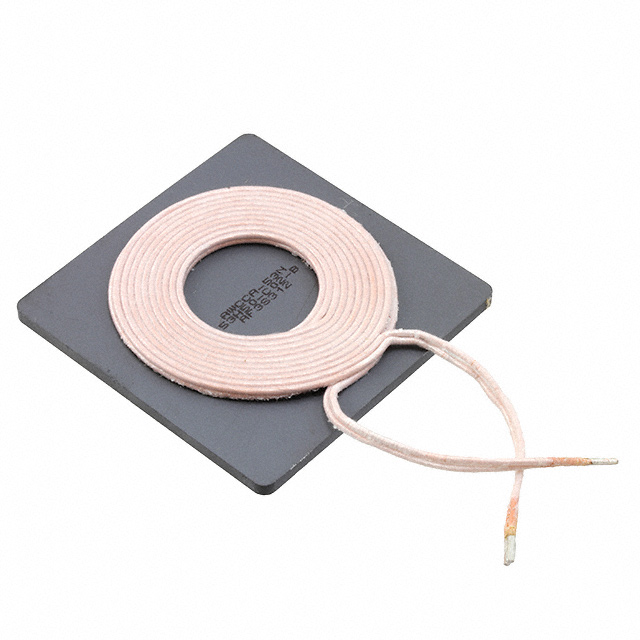

AWCCA-53N53H50-C02-B
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AWCCA-53N53H50-C02-B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AWCCA-53N53H50-C02-B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AWCCA-53N53H50-C02-B |
|---|---|
| Manufacturer | Abracon Corporation |
| Description | RX TX 1 COIL 1 LAYER 6.3UH 11A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $2.936 | $2.643 | $1.879 | $1.762 | $1.645 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | AWCCA-53N53H50-C02-B | Manufacturer | Abracon Corporation |
|---|---|---|---|
| Description | RX TX 1 COIL 1 LAYER 6.3UH 11A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20020 pcs | Data sheet | AWCCA-53N53 Series |
| Category | Inductors, Coils, Chokes | Type | 1 Coil, 1 Layer |
| Tolerance | ±10% | Size / Dimension | 2.08" L x 2.08" W x 0.19" H (53.0mm x 53.0mm x 5.0mm) |
| Series | AWCCA-53N53 | Q @ Freq | 66 @ 100kHz |
| Other Names | 535-12509 | Operating Temperature | -25°C ~ 85°C |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 6.3µH |
| Function | Receiver, Transmitter | Frequency - Self Resonant | 6.4MHz |
| Detailed Description | 1 Coil, 1 Layer 6.3µH Wireless Charging Coil Receiver, Transmitter 19 mOhm | DC Resistance (DCR) | 19 mOhm |
| Current Rating | 11A | Current - Saturation | 40A |
