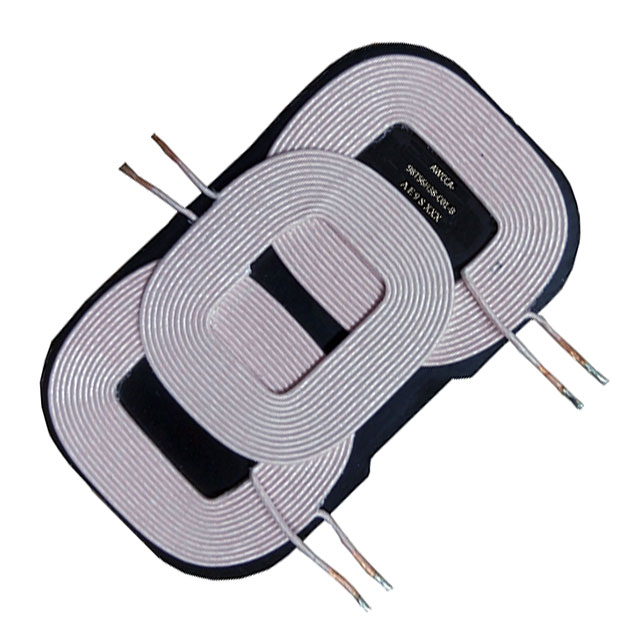

AWCCA-98T56H38-C01-B
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AWCCA-98T56H38-C01-B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AWCCA-98T56H38-C01-B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AWCCA-98T56H38-C01-B |
|---|---|
| Manufacturer | Abracon Corporation |
| Description | TRANSMITTER 3 COIL 1 LAYER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $4.142 | $3.831 | $3.107 | $2.899 | $2.754 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | AWCCA-98T56H38-C01-B | Manufacturer | Abracon Corporation |
|---|---|---|---|
| Description | TRANSMITTER 3 COIL 1 LAYER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12806 pcs | Data sheet | AWCCA-98T56H38-C01-B Datasheet |
| Category | Inductors, Coils, Chokes | Type | 3 Coil, 1 Layer |
| Tolerance | ±10% | Size / Dimension | 3.86" L x 2.20" W x 0.15" H (98.0mm x 56.0mm x 3.8mm) |
| Series | AWCCA | Q @ Freq | 120,110 @ 100kHZ |
| Other Names | 535-13310 | Operating Temperature | -25°C ~ 85°C |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 12.0µH, 11.5µH, 12.0µH |
| Function | Transmitter | Frequency - Self Resonant | - |
| Detailed Description | 3 Coil, 1 Layer 12.0µH, 11.5µH, 12.0µH Wireless Charging Coil Transmitter 56 mOhm | DC Resistance (DCR) | 56 mOhm |
| Current Rating | - | Current - Saturation | - |
