760308105

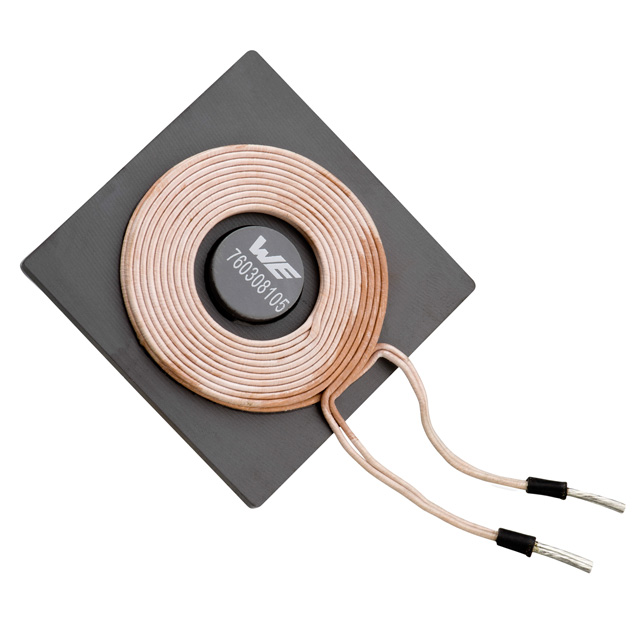

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 760308105 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 760308105 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 760308105 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | TX 1 COIL 1 LAYER 6.3UH 13A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 250 pcs | 500 pcs |
|---|---|---|---|---|---|
| $4.609 | $4.223 | $3.989 | $3.754 | $3.519 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 760308105 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | TX 1 COIL 1 LAYER 6.3UH 13A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8621 pcs | Data sheet | 760308105 |
| Category | Inductors, Coils, Chokes | Type | 1 Coil, 1 Layer |
| Tolerance | ±10% | Size / Dimension | 2.10" L x 2.10" W x 0.24" H (53.3mm x 53.3mm x 6.0mm) |
| Series | WE-WPCC | Q @ Freq | 55 @ 125kHz |
| Other Names | 732-4463 | Operating Temperature | -20°C ~ 105°C |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 6.3µH |
| Function | Transmitter | Frequency - Self Resonant | 20MHz |
| Detailed Description | 1 Coil, 1 Layer 6.3µH Wireless Charging Coil Transmitter 24 mOhm Max | DC Resistance (DCR) | 24 mOhm Max |
| Current Rating | 13A | Current - Saturation | 16A |
