Home > Products > Inductors, Coils, Chokes > Wireless Charging Coils > WT151512-22F2-ID

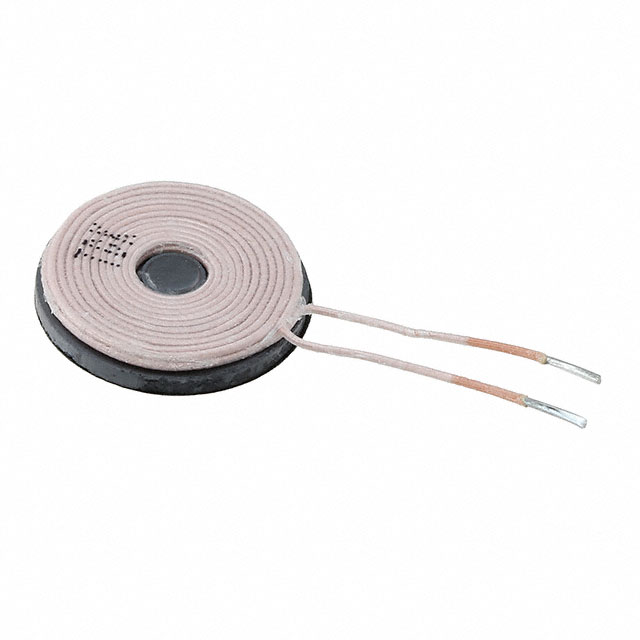

WT151512-22F2-ID

WT151512-22F2-ID

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy WT151512-22F2-ID with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	WT151512-22F2-ID
Manufacturer	TDK Corporation
Description	TX 1 COIL 2 LAYER 6.8UH
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	500 pcs	1000 pcs	2500 pcs
~~In Stock~~ 22870 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs
	$2.625	$2.387	$1.623
	$1.48	$1.384	$1.337

Product parameter
Data sheet

Product parameter

Part Number	WT151512-22F2-ID	Manufacturer	TDK Corporation
Description	TX 1 COIL 2 LAYER 6.8UH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	22870 pcs	Data sheet	WT151512-22F2-ID Datasheet WT151512-22F2-ID Drawing WT151512-22F2-ID Spec
Category	Inductors, Coils, Chokes	Type	1 Coil, 2 Layer
Tolerance	±5%	Size / Dimension	0.602" Dia x 0.087" H (15.30mm x 2.20mm)
Series	WT	Q @ Freq	-
Other Names	445-174578 TXDF11159TWN6505	Operating Temperature	-
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	6.8µH
Function	Transmitter	Frequency - Self Resonant	-
Detailed Description	1 Coil, 2 Layer 6.8µH Wireless Charging Coil Transmitter 170 mOhm	DC Resistance (DCR)	170 mOhm
Current Rating	-	Current - Saturation	-
