760308103206

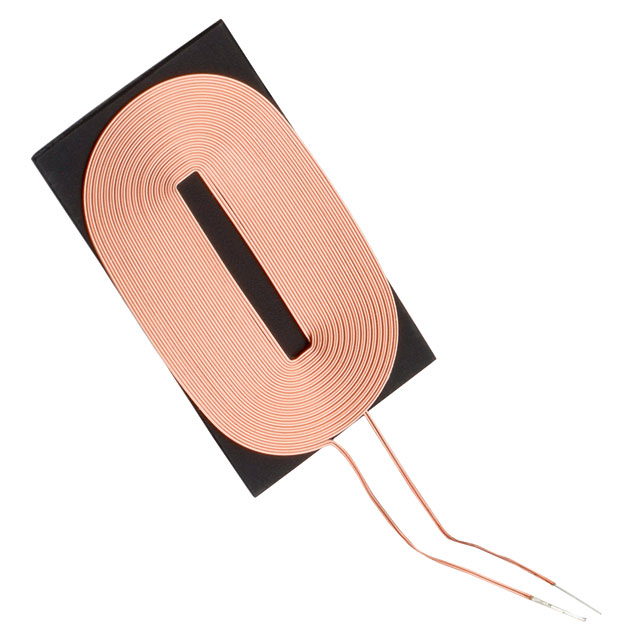

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 760308103206 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 760308103206 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 760308103206 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | RX 1 COIL 1 LAYER 7.5UH 1.55A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 50 pcs | 100 pcs | 250 pcs | 432 pcs |
|---|---|---|---|---|---|
| $3.612 | $3.413 | $2.888 | $2.495 | $2.10 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 760308103206 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | RX 1 COIL 1 LAYER 7.5UH 1.55A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17174 pcs | Data sheet | 760308103206 Drawing |
| Category | Inductors, Coils, Chokes | Type | 1 Coil, 1 Layer |
| Tolerance | ±10% | Size / Dimension | 1.10" L x 0.59" W x 0.03" H (28mm x 15.0mm x 0.7mm) |
| Series | WE-WPCC | Q @ Freq | 16 @ 125kHz |
| Other Names | 732-6211 | Operating Temperature | -20°C ~ 105°C |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 7.5µH |
| Function | Receiver | Frequency - Self Resonant | 23MHz |
| Detailed Description | 1 Coil, 1 Layer 7.5µH Wireless Charging Coil Receiver 340 mOhm | DC Resistance (DCR) | 340 mOhm |
| Current Rating | 1.55A | Current - Saturation | 3A |
