Home > Products > Inductors, Coils, Chokes > Wireless Charging Coils > 760308104120

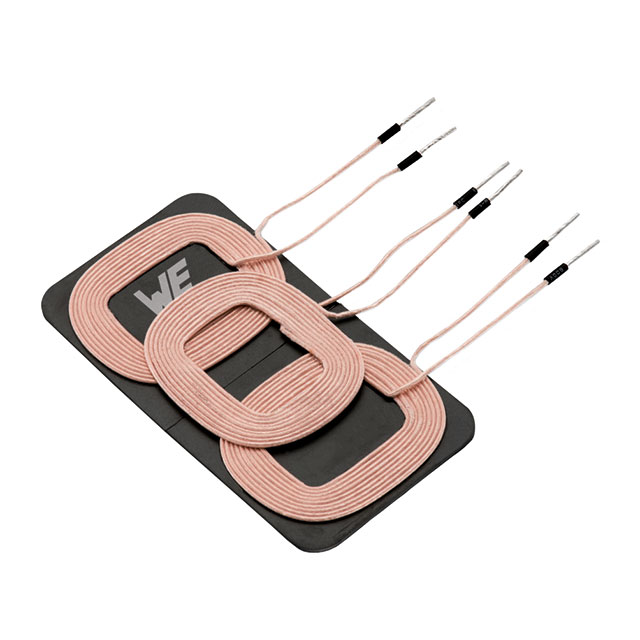

760308104120

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 760308104120 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	760308104120
Manufacturer	Wurth Electronics
Description	WE-WPCC WIRELESS POWER CHARGING
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5358 pcs
Reference Price (In US Dollars)	1 pcs	14 pcs	28 pcs	50 pcs	84 pcs
Reference Price (In US Dollars)	$10.285	$9.793	$9.068	$8.246	$7.169

Product parameter
Data sheet

Product parameter

Part Number	760308104120	Manufacturer	Wurth Electronics
Description	WE-WPCC WIRELESS POWER CHARGING	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5358 pcs	Data sheet	760308104120 WE-WPCC Power Array
Category	Inductors, Coils, Chokes	Type	3 Coil, 1 Layer
Tolerance	±10%	Series	WE-WPCC
Q @ Freq	100 @ 125kHz	Other Names	732-10330
Operating Temperature	-20°C ~ 105°C	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance	6.9µH, 6.4µH, 6.9µH	Function	Transmitter
Frequency - Self Resonant	15MHz	Detailed Description	3 Coil, 1 Layer 6.9µH, 6.4µH, 6.9µH Wireless Charging Coil Transmitter 45 mOhm
DC Resistance (DCR)	45 mOhm	Current Rating	9A
Current - Saturation	12A
