Home > Products > Inductors, Coils, Chokes > Wireless Charging Coils > 760308106

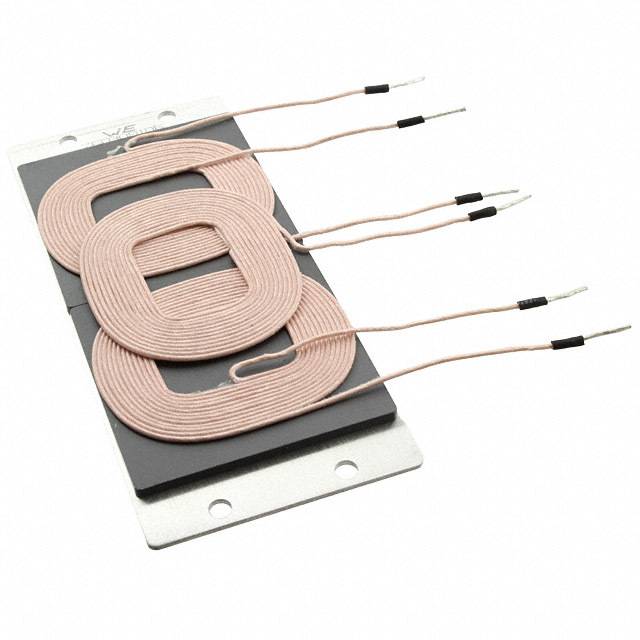

760308106

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 760308106 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	760308106
Manufacturer	Wurth Electronics
Description	TX 3 COIL 1 LAYER 10A
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 3026 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	50 pcs
Reference Price (In US Dollars)	$12.114	$10.279	$10.095

Product parameter
Data sheet

Product parameter

Part Number	760308106	Manufacturer	Wurth Electronics
Description	TX 3 COIL 1 LAYER 10A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3026 pcs	Data sheet	760308106 WE-WPCC Power Array
Category	Inductors, Coils, Chokes	Type	3 Coil, 1 Layer
Tolerance	-	Size / Dimension	5.118" L x 0.276" W x 2.154" H (130.00mm x 7.00mm x 54.70mm)
Series	WE-WPCC	Q @ Freq	140 @ 125kHz
Other Names	732-4517	Operating Temperature	-
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	12.5µH, 11.5µH, 12.5µH
Function	Transmitter	Frequency - Self Resonant	-
Detailed Description	3 Coil, 1 Layer 12.5µH, 11.5µH, 12.5µH Wireless Charging Coil Transmitter 65 mOhm	DC Resistance (DCR)	65 mOhm
Current Rating	10A	Current - Saturation	10A
