Home > Products > Inductors, Coils, Chokes > Wireless Charging Coils > 760308111

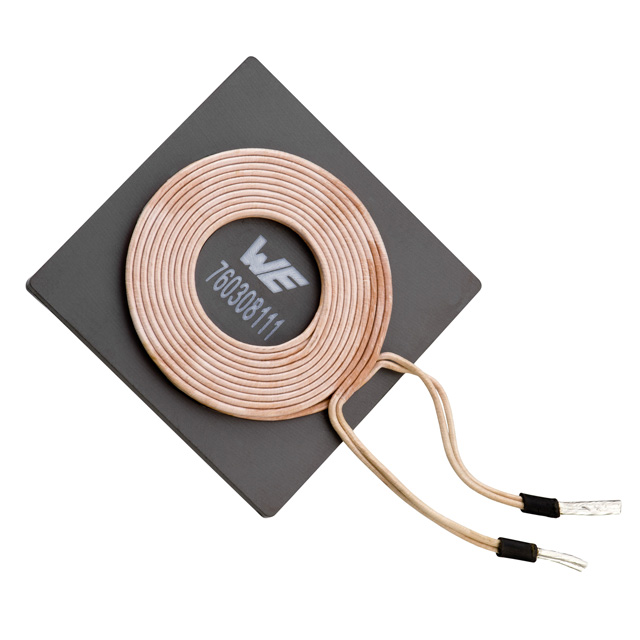

760308111

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 760308111 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	760308111
Manufacturer	Wurth Electronics
Description	TX 1 COIL 1 LAYER 6.3UH 13A
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 9940 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	50 pcs	100 pcs
Reference Price (In US Dollars)	$4.534	$4.155	$3.924	$3.693

Product parameter
Data sheet

Product parameter

Part Number	760308111	Manufacturer	Wurth Electronics
Description	TX 1 COIL 1 LAYER 6.3UH 13A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	9940 pcs	Data sheet	760308111 WE-WPCC Transmitter Coil
Category	Inductors, Coils, Chokes	Type	1 Coil, 1 Layer
Tolerance	±10%	Size / Dimension	2.10" L x 2.10" W x 0.24" H (53.3mm x 53.3mm x 6.0mm)
Series	WE-WPCC	Q @ Freq	80 @ 125kHz
Other Names	732-4461	Operating Temperature	-20°C ~ 105°C
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	6.3µH
Function	Transmitter	Frequency - Self Resonant	20MHz
Detailed Description	1 Coil, 1 Layer 6.3µH Wireless Charging Coil Transmitter 24 mOhm Max	DC Resistance (DCR)	24 mOhm Max
Current Rating	13A	Current - Saturation	16A
