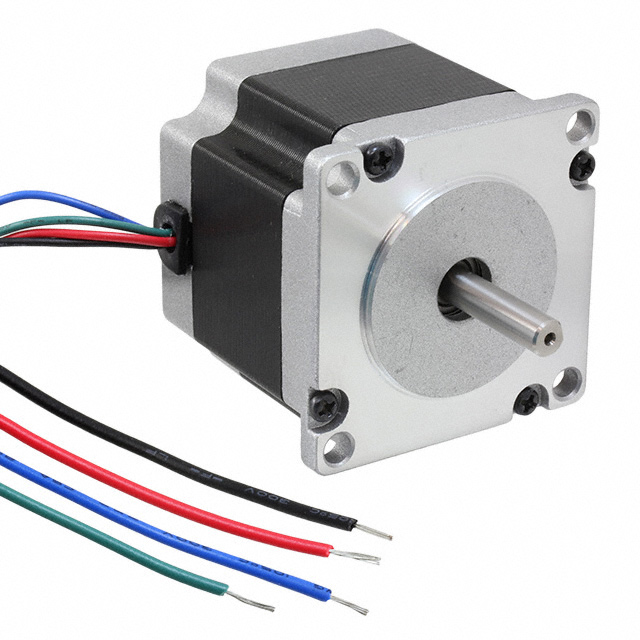

QSH5718-51-28-101
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy QSH5718-51-28-101 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy QSH5718-51-28-101 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | QSH5718-51-28-101 |
|---|---|
| Manufacturer | TRINAMIC Motion Control GmbH |
| Description | STEP MOTOR HYBRID BIPOLAR 2.3V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $20.207 | $19.511 | $19.163 | $18.536 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | QSH5718-51-28-101 | Manufacturer | TRINAMIC Motion Control GmbH |
|---|---|---|---|
| Description | STEP MOTOR HYBRID BIPOLAR 2.3V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1892 pcs | Data sheet | QSH5718 Manual |
| Category | Motors, Solenoids, Driver Boards/Modules | Weight | 1.5 lbs (680.4g) |
| Voltage - Rated | 2.3VDC | Type | Hybrid |
| Torque - Holding (oz-in / mNm) | 143.05 / 1010 | Termination Style | Wire Leads |
| Steps per Revolution | 200 | Step Angle | 1.8° |
| Size / Dimension | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | Series | QMot QSH5718 |
| Rotor Inertia | 275gcm² | Other Names | 1460-1078 50-0035 |
| Operating Temperature | -20°C ~ 50°C | NEMA Frame Size | 23 |
| Mounting Hole Spacing | 1.856" (47.14mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Length - Shaft and Bearing | 0.945" (24.00mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Flatted Shaft |
| Diameter - Shaft | 0.250" (6.35mm) | Detailed Description | Bipolar Stepper Motor Frame Size 23 200 Step 2.8A 2.3VDC |
| Current Rating | 2.8A | Coil Type | Bipolar |
| Coil Resistance | 830 mOhms | Approvals | CE |
| Accuracy | ±5% |
