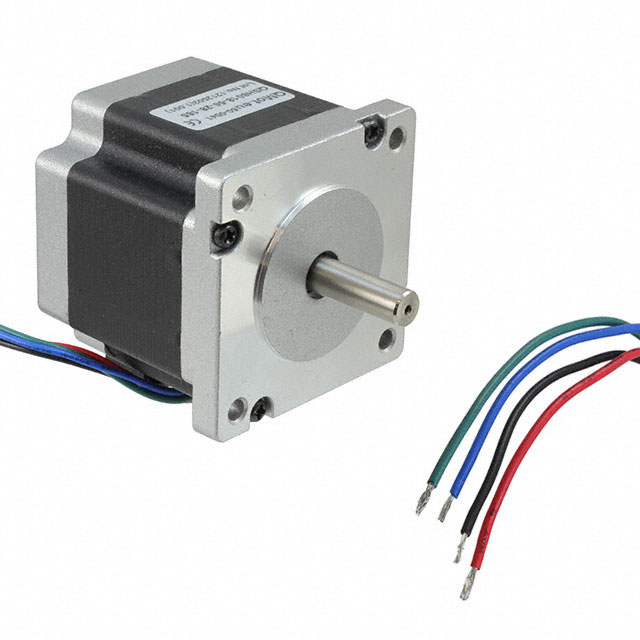

QSH6018-56-28-165
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy QSH6018-56-28-165 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy QSH6018-56-28-165 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | QSH6018-56-28-165 |
|---|---|
| Manufacturer | TRINAMIC Motion Control GmbH |
| Description | STEP MOTOR HYBRID BIPOLAR 2.52V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $26.467 | $25.538 | $25.074 | $24.145 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | QSH6018-56-28-165 | Manufacturer | TRINAMIC Motion Control GmbH |
|---|---|---|---|
| Description | STEP MOTOR HYBRID BIPOLAR 2.52V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1511 pcs | Data sheet | QSH6018 Manual |
| Category | Motors, Solenoids, Driver Boards/Modules | Weight | 1.7 lbs (771.1g) |
| Voltage - Rated | 2.52VDC | Type | Hybrid |
| Torque - Holding (oz-in / mNm) | 233.66 / 1650 | Termination Style | Wire Leads |
| Steps per Revolution | 200 | Step Angle | 1.8° |
| Size / Dimension | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | Series | QMot QSH6018 |
| Rotor Inertia | 400gcm² | Other Names | 1460-1082 50-0041 |
| Operating Temperature | -20°C ~ 50°C | NEMA Frame Size | 24 |
| Mounting Hole Spacing | 1.856" (47.14mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Length - Shaft and Bearing | 0.945" (24.00mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Flatted Shaft |
| Diameter - Shaft | 0.315" (8.00mm) | Detailed Description | Bipolar Stepper Motor Frame Size 24 200 Step 2.8A 2.52VDC |
| Current Rating | 2.8A | Coil Type | Bipolar |
| Coil Resistance | 900 mOhms | Approvals | CE |
| Accuracy | ±5% |
