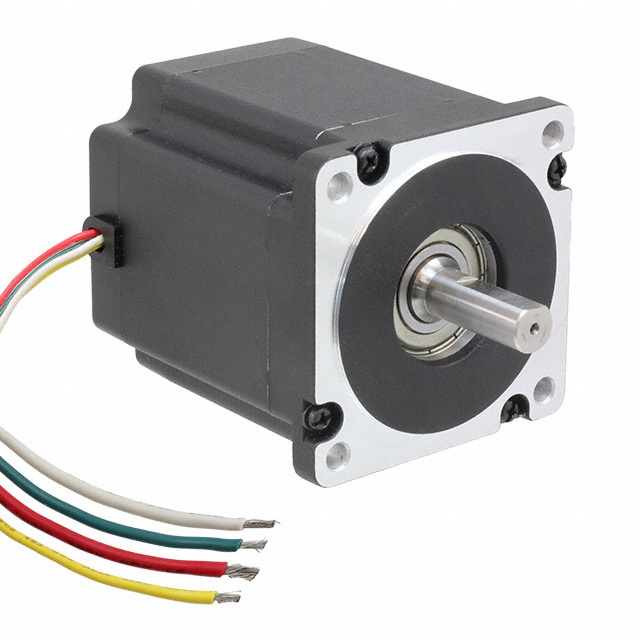

QSH8618-96-55-700
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy QSH8618-96-55-700 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy QSH8618-96-55-700 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | QSH8618-96-55-700 |
|---|---|
| Manufacturer | TRINAMIC Motion Control GmbH |
| Description | STEP MOTOR HYBRID BIPOLAR 2.56V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $100.188 | $96.609 | $95.178 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | QSH8618-96-55-700 | Manufacturer | TRINAMIC Motion Control GmbH |
|---|---|---|---|
| Description | STEP MOTOR HYBRID BIPOLAR 2.56V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 342 pcs | Data sheet | QSH6018 Manual |
| Category | Motors, Solenoids, Driver Boards/Modules | Weight | 6.2 lbs (2.8kg) |
| Voltage - Rated | 2.56VDC | Type | Hybrid |
| Torque - Holding (oz-in / mNm) | 991.28 / 7000 | Termination Style | Wire Leads |
| Steps per Revolution | 200 | Step Angle | 1.8° |
| Size / Dimension | Square - 3.380" x 3.380" (85.85mm x 85.85mm) | Series | QMot QSH8618 |
| Rotor Inertia | 2700gcm² | Other Names | 1460-1085 50-0063 |
| Operating Temperature | -20°C ~ 50°C | NEMA Frame Size | 34 |
| Mounting Hole Spacing | 2.740" (69.60mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 6 Weeks | Length - Shaft and Bearing | 1.310" (33.27mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Flatted Shaft |
| Diameter - Shaft | 0.500" (12.70mm) | Detailed Description | Bipolar Stepper Motor Frame Size 34 200 Step 5.5A 2.56VDC |
| Current Rating | 5.5A | Coil Type | Bipolar |
| Coil Resistance | 450 mOhms | Approvals | CE |
| Accuracy | ±5% |
