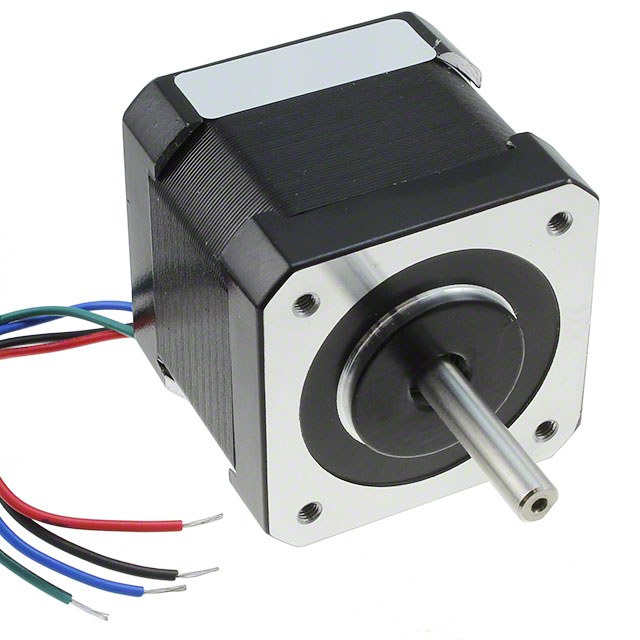

QSH4218-41-10-035
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy QSH4218-41-10-035 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy QSH4218-41-10-035 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | QSH4218-41-10-035 |
|---|---|
| Manufacturer | TRINAMIC Motion Control GmbH |
| Description | STEP MOTOR HYBRID BIPOLAR 4.5V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $12.944 | $12.498 | $12.275 | $11.873 | $11.605 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | QSH4218-41-10-035 | Manufacturer | TRINAMIC Motion Control GmbH |
|---|---|---|---|
| Description | STEP MOTOR HYBRID BIPOLAR 4.5V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3243 pcs | Data sheet | QSH4218 Manual |
| Category | Motors, Solenoids, Driver Boards/Modules | Weight | 0.617 lb (279.87g) |
| Voltage - Rated | 4.5VDC | Type | Hybrid |
| Torque - Holding (oz-in / mNm) | 49.56 / 350 | Termination Style | Wire Leads |
| Steps per Revolution | 200 | Step Angle | 1.8° |
| Size / Dimension | Square - 1.665" x 1.665" (42.30mm x 42.30mm) | Series | QMot QSH4218 |
| Rotor Inertia | 54gcm² | Other Names | 1460-1075 50-0029 |
| Operating Temperature | -20°C ~ 50°C | NEMA Frame Size | 17 |
| Mounting Hole Spacing | 1.220" (30.99mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 6 Weeks | Length - Shaft and Bearing | 0.945" (24.00mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Flatted Shaft |
| Diameter - Shaft | 0.197" (5.00mm) | Detailed Description | Bipolar Stepper Motor 200 Step 1A 4.5VDC |
| Current Rating | 1A | Coil Type | Bipolar |
| Coil Resistance | 4.5 Ohms | Approvals | CE |
| Accuracy | ±5% |
