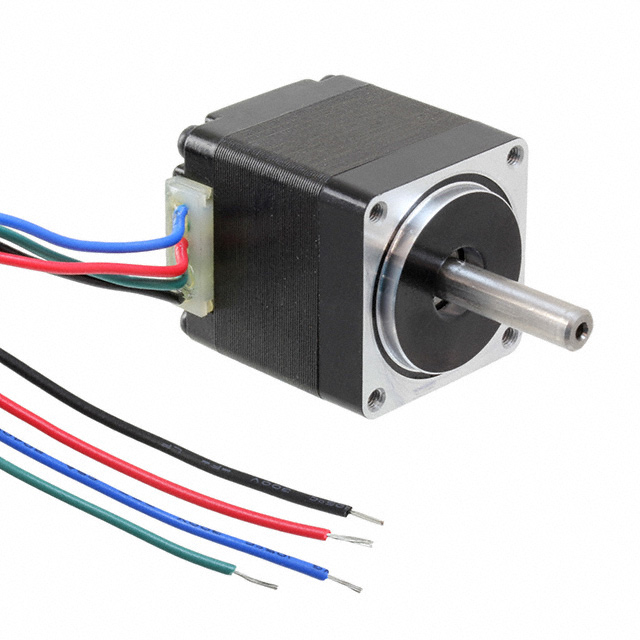

QSH2818-32-07-006
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy QSH2818-32-07-006 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy QSH2818-32-07-006 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | QSH2818-32-07-006 |
|---|---|
| Manufacturer | TRINAMIC Motion Control GmbH |
| Description | STEP MOTOR HYBRID BIPOLAR 3.8V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $13.922 | $13.443 | $13.203 | $12.771 | $12.483 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | QSH2818-32-07-006 | Manufacturer | TRINAMIC Motion Control GmbH |
|---|---|---|---|
| Description | STEP MOTOR HYBRID BIPOLAR 3.8V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2622 pcs | Data sheet | QSH2818 Manual |
| Category | Motors, Solenoids, Driver Boards/Modules | Weight | 0.242 lb (109.77g) |
| Voltage - Rated | 3.8VDC | Type | Hybrid |
| Torque - Holding (oz-in / mNm) | 8.49 / 60 | Termination Style | Wire Leads |
| Steps per Revolution | 200 | Step Angle | 1.8° |
| Size / Dimension | Square - 1.100" x 1.100" (28.00mm x 28.00mm) | Series | QMot QSH2818 |
| Rotor Inertia | 9gcm² | Other Names | 1460-1072 50-0014 |
| Operating Temperature | -20°C ~ 50°C | NEMA Frame Size | 11 |
| Mounting Hole Spacing | 0.905" (22.98mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 6 Weeks | Length - Shaft and Bearing | 0.787" (20.00mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Flatted Shaft |
| Diameter - Shaft | 0.197" (5.00mm) | Detailed Description | Bipolar Stepper Motor Frame Size 11 200 Step 0.67A 3.8VDC |
| Current Rating | 670mA | Coil Type | Bipolar |
| Coil Resistance | 5.6 Ohms | Approvals | CE |
| Accuracy | ±5% |
