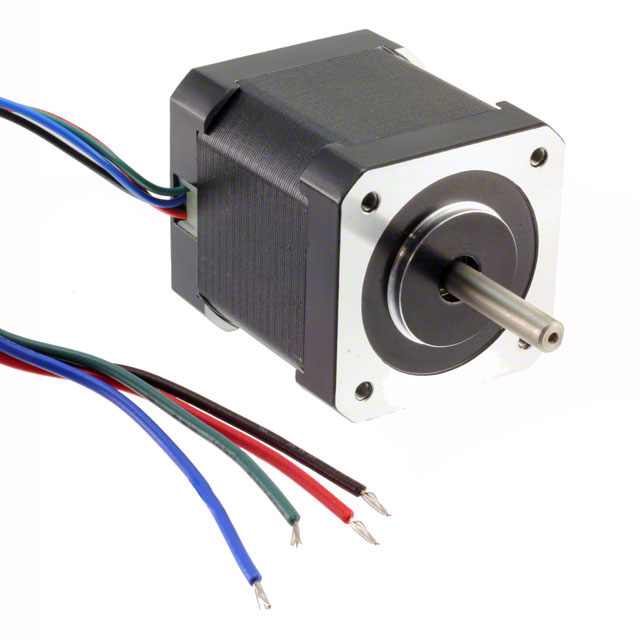

QSH4218-47-28-040
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy QSH4218-47-28-040 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy QSH4218-47-28-040 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | QSH4218-47-28-040 |
|---|---|
| Manufacturer | TRINAMIC Motion Control GmbH |
| Description | STEP MOTOR HYBRID BIPOLAR 1.4V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $19.928 | $18.755 | $17.583 | $16.762 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | QSH4218-47-28-040 | Manufacturer | TRINAMIC Motion Control GmbH |
|---|---|---|---|
| Description | STEP MOTOR HYBRID BIPOLAR 1.4V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1950 pcs | Data sheet | QSH4218 Manual |
| Category | Motors, Solenoids, Driver Boards/Modules | Weight | 0.772 lb (350.17g) |
| Voltage - Rated | 1.4VDC | Type | Hybrid |
| Torque - Holding (oz-in / mNm) | 56.3 / 400 | Termination Style | Wire Leads |
| Steps per Revolution | 200 | Step Angle | 1.8° |
| Size / Dimension | Square - 1.665" x 1.665" (42.30mm x 42.30mm) | Series | QMot QSH4218 |
| Rotor Inertia | 68gcm² | Other Names | 1460-1163 |
| Operating Temperature | -20°C ~ 50°C | NEMA Frame Size | 17 |
| Mounting Hole Spacing | 1.220" (30.99mm) | Manufacturer Standard Lead Time | 9 Weeks |
| Length - Shaft and Bearing | 0.945" (24.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Flatted Shaft | Diameter - Shaft | 0.197" (5.00mm) |
| Detailed Description | Bipolar Stepper Motor 200 Step 2.81A 1.4VDC | Current Rating | 2.81A |
| Coil Type | Bipolar | Coil Resistance | 1.5 Ohms |
| Approvals | - | Accuracy | ±5% |
