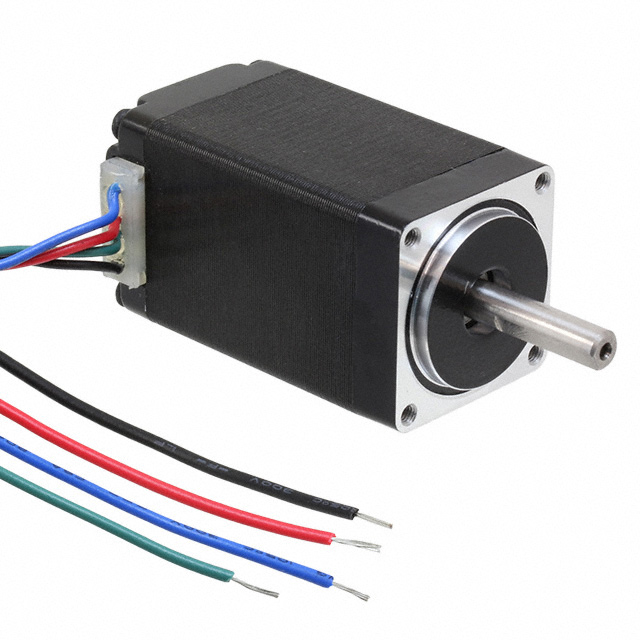

QSH2818-51-07-012
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy QSH2818-51-07-012 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy QSH2818-51-07-012 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | QSH2818-51-07-012 |
|---|---|
| Manufacturer | TRINAMIC Motion Control GmbH |
| Description | STEP MOTOR HYBRID BIPOLAR 6.2V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $18.058 | $17.435 | $17.124 | $16.564 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | QSH2818-51-07-012 | Manufacturer | TRINAMIC Motion Control GmbH |
|---|---|---|---|
| Description | STEP MOTOR HYBRID BIPOLAR 6.2V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1911 pcs | Data sheet | QSH2818 Manual |
| Category | Motors, Solenoids, Driver Boards/Modules | Weight | 0.441 lb (200.03g) |
| Voltage - Rated | 6.2VDC | Type | Hybrid |
| Torque - Holding (oz-in / mNm) | 16.99 / 120 | Termination Style | Wire Leads |
| Steps per Revolution | 200 | Step Angle | 1.8° |
| Size / Dimension | Square - 1.100" x 1.100" (28.00mm x 28.00mm) | Series | QMot QSH2818 |
| Rotor Inertia | 18gcm² | Other Names | 1460-1073 50-0031 |
| Operating Temperature | -20°C ~ 50°C | NEMA Frame Size | 11 |
| Mounting Hole Spacing | 0.905" (22.98mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 6 Weeks | Length - Shaft and Bearing | 0.787" (20.00mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Flatted Shaft |
| Diameter - Shaft | 0.197" (5.00mm) | Detailed Description | Bipolar Stepper Motor Frame Size 11 200 Step 0.67A 6.2VDC |
| Current Rating | 670mA | Coil Type | Bipolar |
| Coil Resistance | 9.2 Ohms | Approvals | CE |
| Accuracy | ±5% |
