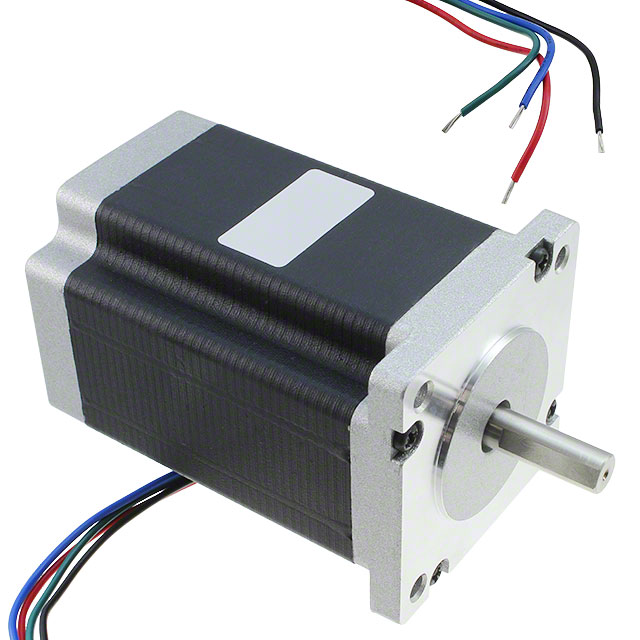

QSH6018-86-28-310
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy QSH6018-86-28-310 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy QSH6018-86-28-310 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | QSH6018-86-28-310 |
|---|---|
| Manufacturer | TRINAMIC Motion Control GmbH |
| Description | STEP MOTOR HYBRID BIPOLAR 4.17V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $54.542 | $52.595 | $51.815 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | QSH6018-86-28-310 | Manufacturer | TRINAMIC Motion Control GmbH |
|---|---|---|---|
| Description | STEP MOTOR HYBRID BIPOLAR 4.17V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 666 pcs | Data sheet | QSH6018 Manual |
| Category | Motors, Solenoids, Driver Boards/Modules | Weight | 3.1 lbs (1.4kg) |
| Voltage - Rated | 4.17VDC | Type | Hybrid |
| Torque - Holding (oz-in / mNm) | 438.99 / 3100 | Termination Style | Wire Leads |
| Steps per Revolution | 200 | Step Angle | 1.8° |
| Size / Dimension | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | Series | QMot QSH6018 |
| Rotor Inertia | 840gcm² | Other Names | 1460-1084 50-0033 |
| Operating Temperature | -20°C ~ 50°C | NEMA Frame Size | 24 |
| Mounting Hole Spacing | 1.856" (47.14mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 6 Weeks | Length - Shaft and Bearing | 0.945" (24.00mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Flatted Shaft |
| Diameter - Shaft | 0.315" (8.00mm) | Detailed Description | Bipolar Stepper Motor Frame Size 24 200 Step 2.8A 4.17VDC |
| Current Rating | 2.8A | Coil Type | Bipolar |
| Coil Resistance | 1.5 Ohms | Approvals | CE |
| Accuracy | ±5% |
