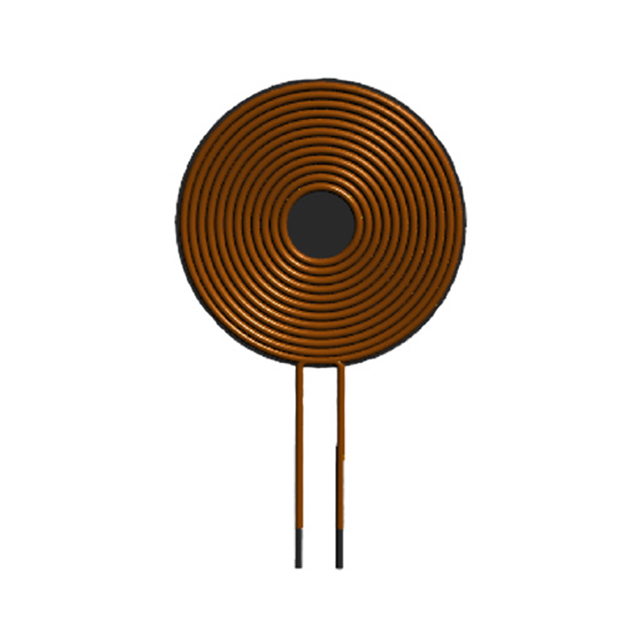

AWCCA-RX350300-101
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AWCCA-RX350300-101 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AWCCA-RX350300-101 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AWCCA-RX350300-101 |
|---|---|
| Manufacturer | Abracon Corporation |
| Description | RX COIL, 1 COIL 25UH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 280 pcs | ||
|---|---|---|---|---|---|
| $1.765 | $1.617 | $0.999 | |||
| 560 pcs | 1120 pcs | 2520 pcs | |||
| $0.941 | $0.882 | $0.853 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | AWCCA-RX350300-101 | Manufacturer | Abracon Corporation |
|---|---|---|---|
| Description | RX COIL, 1 COIL 25UH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 35893 pcs | Data sheet | AWCCA-RX350300-101 Datasheet |
| Category | Inductors, Coils, Chokes | Type | 1 Coil, 2 Layer |
| Tolerance | ±10% | Size / Dimension | 1.38" Dia x 0.12" H (35.0mm x 3.0mm) |
| Series | AWCCA | Q @ Freq | 85 @ 100kHz |
| Other Names | 535-13615 | Operating Temperature | -25°C ~ 85°C |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 25µH |
| Function | Receiver | Frequency - Self Resonant | - |
| Detailed Description | 1 Coil, 2 Layer 25µH Wireless Charging Coil Receiver 170 mOhm | DC Resistance (DCR) | 170 mOhm |
| Current Rating | - | Current - Saturation | - |
