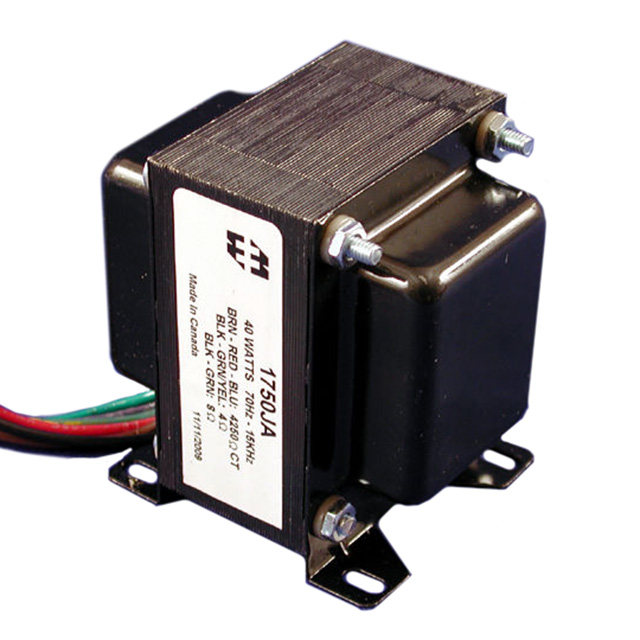

1750JA
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1750JA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1750JA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1750JA |
|---|---|
| Manufacturer | Hammond Manufacturing |
| Description | TRANSFORMER TUBE GUITAR AMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $21.866 | $21.136 | $19.678 | $18.221 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1750JA | Manufacturer | Hammond Manufacturing |
|---|---|---|---|
| Description | TRANSFORMER TUBE GUITAR AMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2091 pcs | Data sheet | 1750,1760 Series Spec.1750JA Drawing |
| Category | Transformers | Weight | - |
| Voltage - Isolation | 2000V @ 1 Second | Turns Ratio - Primary:Secondary | - |
| Termination Style | Wire Leads | Size / Dimension | 2.500" L x 3.150" W (63.50mm x 80.01mm) |
| Series | 1750 | Return Loss | - |
| Power Level | 40W | Packaging | Bulk |
| Other Names | 1750JA-ND HM4563 |
Operating Temperature | - |
| Mounting Type | Chassis Mount | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Impedance - Secondary (Ohms) | 4, 8 | Impedance - Primary (Ohms) | 4.25kCT |
| Height - Seated (Max) | 3.319" (84.30mm) | Frequency Response | ±1dB |
| Frequency Range | 70Hz ~ 15kHz | DC Resistance (DCR) - Secondary | 253 mOhm, 462 mOhm |
| DC Resistance (DCR) - Primary | 82 Ohm, 108.3 Ohm | Approvals | - |
