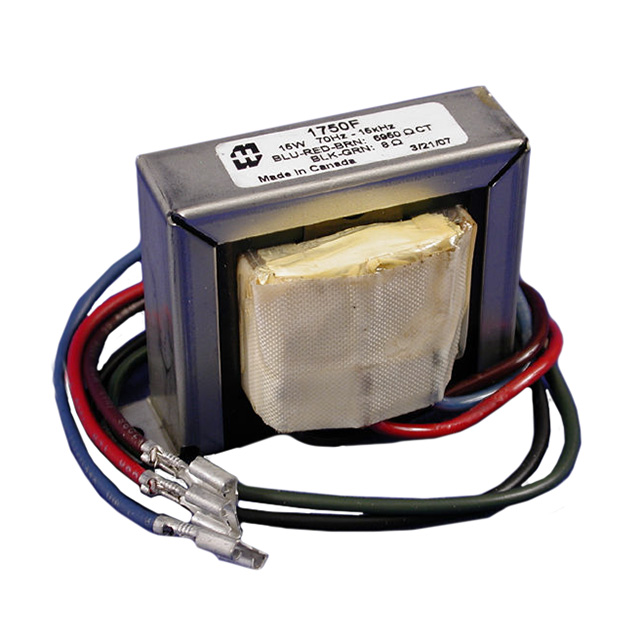

1750F
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1750F with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1750F with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1750F |
|---|---|
| Manufacturer | Hammond Manufacturing |
| Description | TRANSFORMER TUBE GUITAR AMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $13.952 | $13.487 | $12.557 | $11.627 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1750F | Manufacturer | Hammond Manufacturing |
|---|---|---|---|
| Description | TRANSFORMER TUBE GUITAR AMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3367 pcs | Data sheet | 1750,1760 Series Spec.1750 Series Catalog Page1750F Drawing |
| Category | Transformers | Weight | 0.625 lb (283.5g) |
| Voltage - Isolation | - | Turns Ratio - Primary:Secondary | 29.19:1 |
| Transformer Type | Push-Pull Audiophile, Ultra-Linear - Tube Output | Termination Style | Wire Leads |
| Size / Dimension | 3.250" L x 1.687" W (82.55mm x 42.85mm) | Series | 1750 |
| Return Loss | - | Power Level | 15W |
| Packaging | Bulk | Other Names | 1750FHM 1750FHM-ND HM4560 |
| Operating Temperature | - | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | Not Applicable | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Impedance - Secondary (Ohms) | 8 | Impedance - Primary (Ohms) | 6.95kCT |
| Height - Seated (Max) | 2.058" (52.27mm) | Frequency Response | ±1dB |
| Frequency Range | 70Hz ~ 15kHz | DC Resistance (DCR) - Secondary | 409 mOhm |
| DC Resistance (DCR) - Primary | 97.36 Ohm, 194.7 Ohm | Approvals | - |
