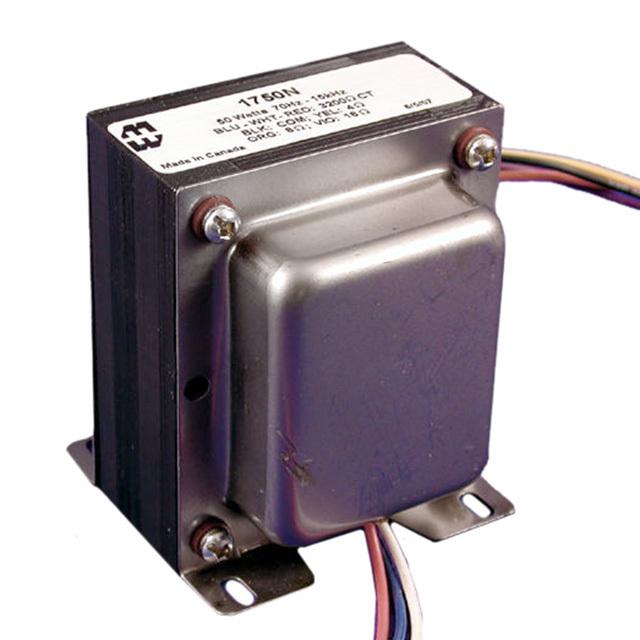

1750N
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1750N with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1750N with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1750N |
|---|---|
| Manufacturer | Hammond Manufacturing |
| Description | TRANSFORMER TUBE GUITAR AMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $30.74 | $29.715 | $27.666 | $25.616 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1750N | Manufacturer | Hammond Manufacturing |
|---|---|---|---|
| Description | TRANSFORMER TUBE GUITAR AMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1198 pcs | Data sheet | 1750,1760 Series Spec.1750N Drawing1750 Series Catalog Page |
| Category | Transformers | Weight | 0.625 lb (283.5g) |
| Voltage - Isolation | - | Turns Ratio - Primary:Secondary | 14.30:1 |
| Transformer Type | Push-Pull Audiophile, Ultra-Linear - Tube Output | Termination Style | Wire Leads |
| Size / Dimension | 3.125" L x 3.350" W (79.38mm x 85.09mm) | Series | 1750 |
| Return Loss | - | Power Level | 50W |
| Packaging | Bulk | Other Names | 1750N-ND HM4570 |
| Operating Temperature | - | Mounting Type | Chassis Mount |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Impedance - Secondary (Ohms) | 4, 8, 16 |
| Impedance - Primary (Ohms) | 3.2kCT | Height - Seated (Max) | 3.800" (96.52mm) |
| Frequency Response | ±1dB | Frequency Range | 70Hz ~ 15kHz |
| DC Resistance (DCR) - Secondary | 170 mOhm, 240 mOhm, 360 mOhm | DC Resistance (DCR) - Primary | 41.74 Ohm, 3.14 Ohm |
| Approvals | - |
