TPN30008NH,LQ

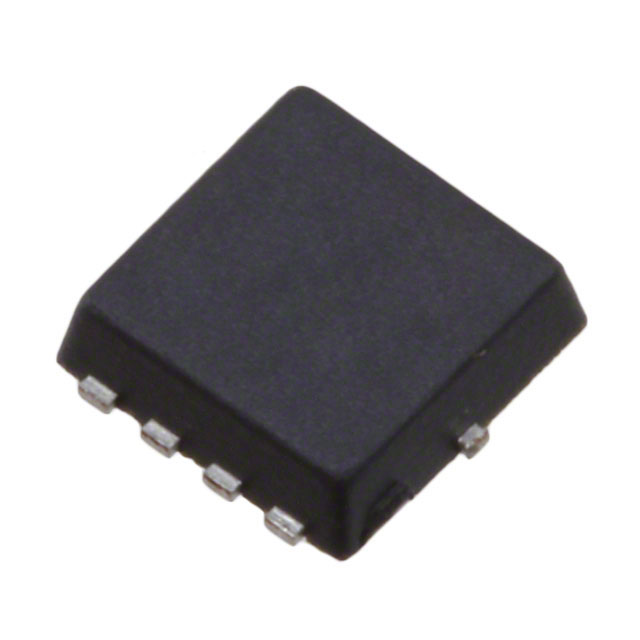

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TPN30008NH,LQ with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TPN30008NH,LQ with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TPN30008NH,LQ |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | MOSFET N-CH 80V 9.6A 8TSON |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.138 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TPN30008NH,LQ | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | MOSFET N-CH 80V 9.6A 8TSON | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 157448 pcs | Data sheet | TPN30008NH |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4V @ 100µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 8-TSON Advance (3.3x3.3) | Series | U-MOSVIII-H |
| Rds On (Max) @ Id, Vgs | 30 mOhm @ 4.8A, 10V | Power Dissipation (Max) | 700mW (Ta), 27W (Tc) |
| Packaging | Tape & Reel (TR) | Package / Case | 8-PowerVDFN |
| Other Names | TPN30008NH,LQ(S TPN30008NHLQ TPN30008NHLQTR |
Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 920pF @ 40V |
| Gate Charge (Qg) (Max) @ Vgs | 11nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 80V | Detailed Description | N-Channel 80V 9.6A (Tc) 700mW (Ta), 27W (Tc) Surface Mount 8-TSON Advance (3.3x3.3) |
| Current - Continuous Drain (Id) @ 25°C | 9.6A (Tc) |
