Home > Products > Transformers > Power Transformers > VPT230-1090

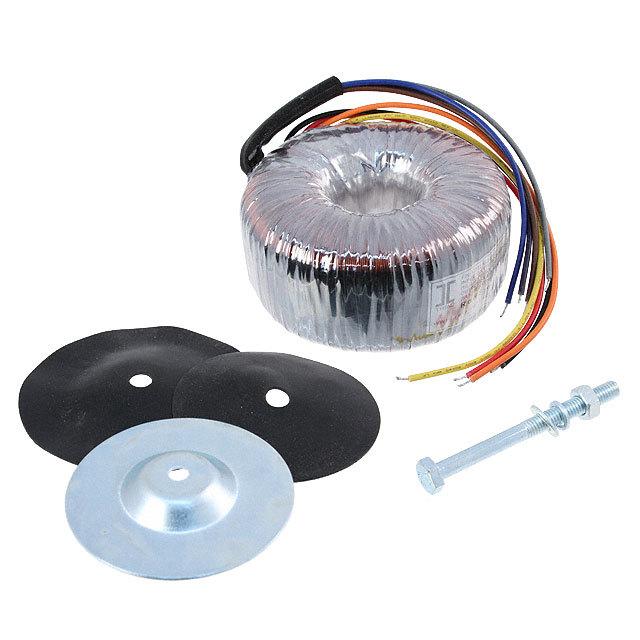

VPT230-1090

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VPT230-1090 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	VPT230-1090
Manufacturer	Triad Magnetics
Description	XFRMR TOROIDAL 250VA CHAS MOUNT
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1793 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
Reference Price (In US Dollars)	$21.652	$20.929	$19.486	$18.043

Product parameter
Data sheet

Product parameter

Part Number	VPT230-1090	Manufacturer	Triad Magnetics
Description	XFRMR TOROIDAL 250VA CHAS MOUNT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1793 pcs	Data sheet	VPT230-1090 Datasheet
Category	Transformers	Weight	4.9 lbs (2.2kg)
Voltage - Secondary (Full Load)	Parallel 115V, Series 230V	Voltage - Primary	115V, 230V
Voltage - Isolation	4000Vrms	Type	Toroidal
Termination Style	Wire Leads	Size / Dimension	112.00mm Dia x 54.00mm W
Series	Chassis Mount: World Series™	Secondary Winding(s)	Dual
Primary Winding(s)	Dual	Power - Max	250 VA
Other Names	237-1352 VPT2301090	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	-
Current - Output (Max)	Parallel 2.18A, Series 1.09A	Center Tap	No
