Home > Products > Transformers > Power Transformers > VPT24-2080

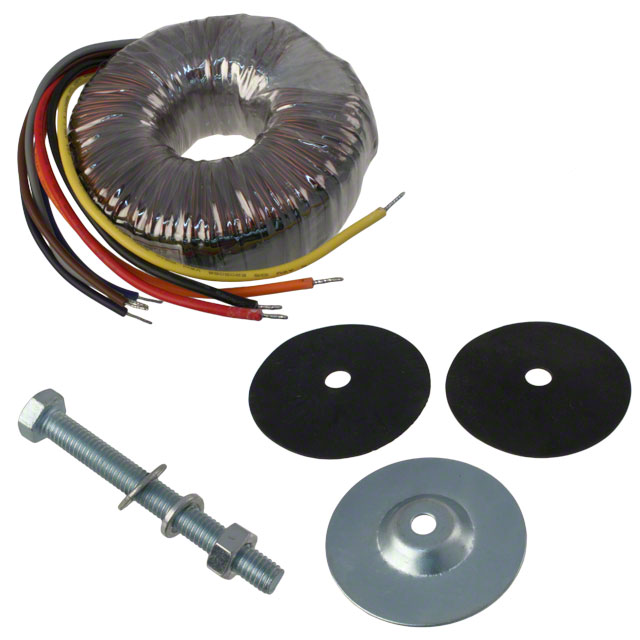

VPT24-2080

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VPT24-2080 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	VPT24-2080
Manufacturer	Triad Magnetics
Description	XFRMR TOROIDAL 50VA CHAS MOUNT
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5231 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
Reference Price (In US Dollars)	$9.995	$8.821	$8.527	$7.645	$7.351

Product parameter
Data sheet

Product parameter

Part Number	VPT24-2080	Manufacturer	Triad Magnetics
Description	XFRMR TOROIDAL 50VA CHAS MOUNT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5231 pcs	Data sheet	VPT24-2080
Category	Transformers	Weight	1.4 lbs (635g)
Voltage - Secondary (Full Load)	Parallel 12V, Series 24V	Voltage - Primary	115V, 230V
Voltage - Isolation	4000Vrms	Type	Toroidal
Termination Style	Wire Leads	Size / Dimension	80.00mm Dia x 33.00mm W
Series	Chassis Mount: World Series™	Secondary Winding(s)	Dual
Primary Winding(s)	Dual	Power - Max	50 VA
Other Names	237-1332 VPT242080	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	-
Current - Output (Max)	Parallel 4.16A, Series 2.08A	Center Tap	No
