Home > Products > Transformers > Power Transformers > VPT12-4170

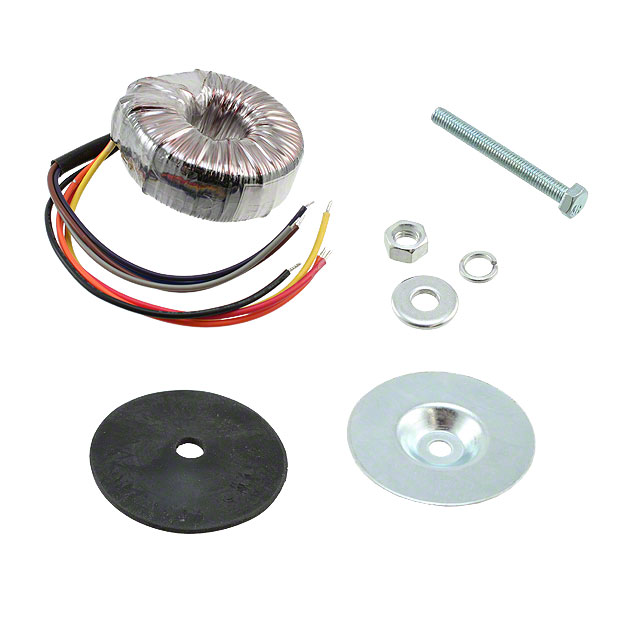

VPT12-4170

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VPT12-4170 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	VPT12-4170
Manufacturer	Triad Magnetics
Description	XFRMR TOROIDAL 50VA CHAS MOUNT
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4886 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
Reference Price (In US Dollars)	$10.124	$8.934	$8.636	$7.743	$7.445

Product parameter
Data sheet

Product parameter

Part Number	VPT12-4170	Manufacturer	Triad Magnetics
Description	XFRMR TOROIDAL 50VA CHAS MOUNT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4886 pcs	Data sheet	VPT12-4170
Category	Transformers	Weight	1.4 lbs (635g)
Voltage - Secondary (Full Load)	Parallel 6V, Series 12V	Voltage - Primary	115V, 230V
Voltage - Isolation	4000Vrms	Type	Toroidal
Termination Style	Wire Leads	Size / Dimension	80.00mm Dia x 33.00mm W
Series	Chassis Mount: World Series™	Secondary Winding(s)	Dual
Primary Winding(s)	Dual	Power - Max	50 VA
Other Names	237-1329 VPT124170	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	-
Current - Output (Max)	Parallel 8.34A, Series 4.17A	Center Tap	No
