Home > Products > Transformers > Power Transformers > VPT18-8800

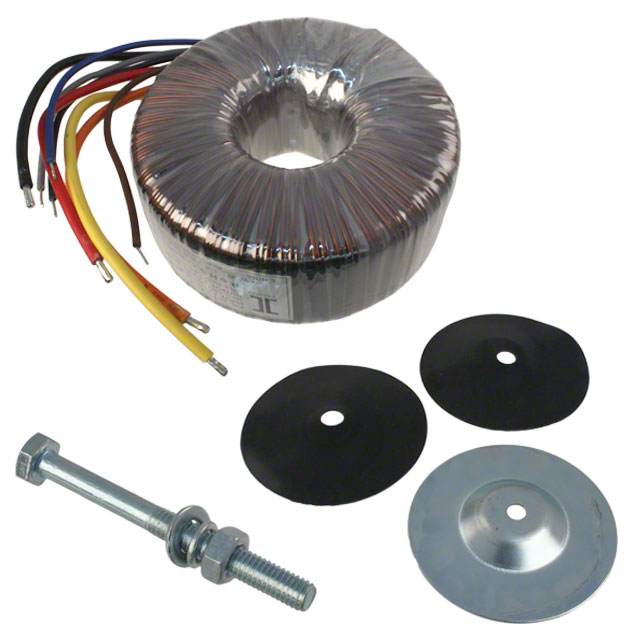

VPT18-8800

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VPT18-8800 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	VPT18-8800
Manufacturer	Triad Magnetics
Description	XFRMR TOROIDAL 160VA CHAS MOUNT
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 2555 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
Reference Price (In US Dollars)	$16.02	$15.484	$14.416	$13.349

Product parameter
Data sheet

Product parameter

Part Number	VPT18-8800	Manufacturer	Triad Magnetics
Description	XFRMR TOROIDAL 160VA CHAS MOUNT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2555 pcs	Data sheet	VPT18-8800
Category	Transformers	Weight	3.6 lbs (1.6kg)
Voltage - Secondary (Full Load)	Parallel 9V, Series 18V	Voltage - Primary	115V, 230V
Voltage - Isolation	4000Vrms	Type	Toroidal
Termination Style	Wire Leads	Size / Dimension	103.00mm Dia x 48.00mm W
Series	Chassis Mount: World Series™	Secondary Winding(s)	Dual
Primary Winding(s)	Dual	Power - Max	160 VA
Other Names	237-1344 VPT188800	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	-
Current - Output (Max)	Parallel 17.6A, Series 8.8A	Center Tap	No
