Home > Products > Transformers > Power Transformers > VPT230-4350

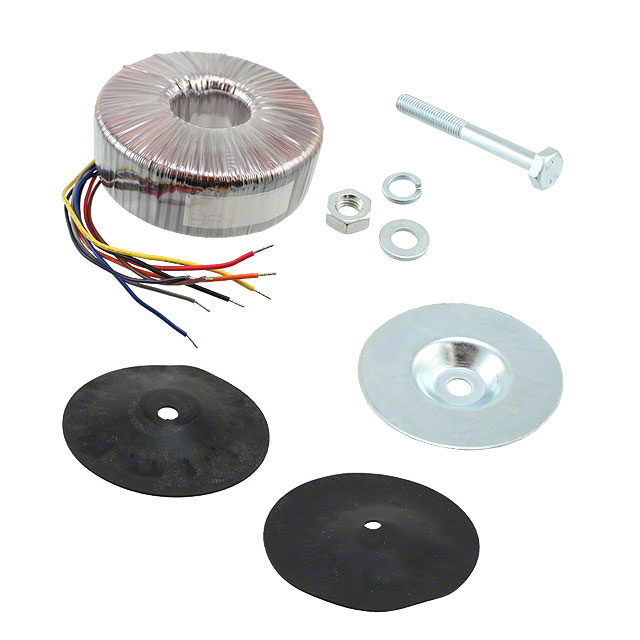

VPT230-4350

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VPT230-4350 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	VPT230-4350
Manufacturer	Triad Magnetics
Description	XFRMR TOROIDAL 1000VA CHAS MOUNT
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 786 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
Reference Price (In US Dollars)	$49.451	$47.802	$44.505	$41.208

Product parameter
Data sheet

Product parameter

Part Number	VPT230-4350	Manufacturer	Triad Magnetics
Description	XFRMR TOROIDAL 1000VA CHAS MOUNT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	786 pcs	Data sheet	VPT230-4350
Category	Transformers	Weight	18 lbs (8.2kg)
Voltage - Secondary (Full Load)	Parallel 115V, Series 230V	Voltage - Primary	115V, 230V
Voltage - Isolation	4000Vrms	Type	Toroidal
Termination Style	Wire Leads	Size / Dimension	175.00mm Dia x 68.00mm W
Series	Chassis Mount: World Series™	Secondary Winding(s)	Dual
Primary Winding(s)	Dual	Power - Max	1000 VA
Other Names	237-1360 VPT2304350	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	-
Current - Output (Max)	Parallel 8.7A, Series 4.35A	Center Tap	No
