Home > Products > Transformers > Power Transformers > VPT24-10420

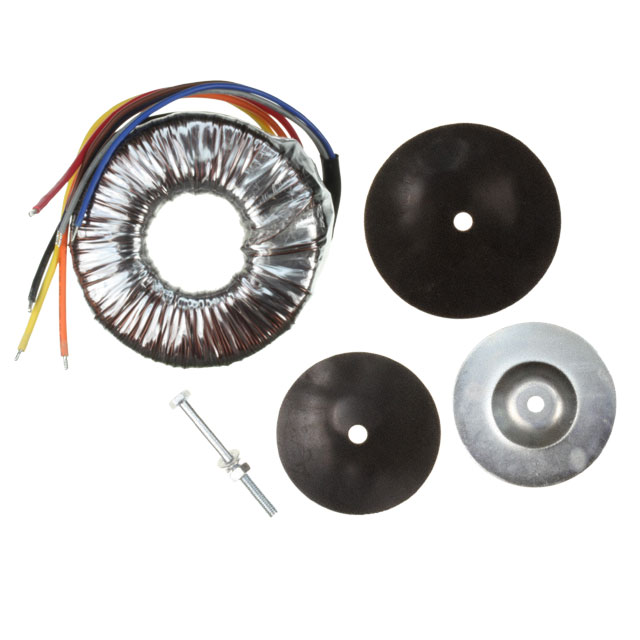

VPT24-10420

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VPT24-10420 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	VPT24-10420
Manufacturer	Triad Magnetics
Description	XFRMR TOROIDAL 250VA CHAS MOUNT
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1850 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
Reference Price (In US Dollars)	$22.367	$21.62	$20.129	$18.638

Product parameter
Data sheet

Product parameter

Part Number	VPT24-10420	Manufacturer	Triad Magnetics
Description	XFRMR TOROIDAL 250VA CHAS MOUNT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1850 pcs	Data sheet	VPT24-10420
Category	Transformers	Weight	4.9 lbs (2.2kg)
Voltage - Secondary (Full Load)	Parallel 12V, Series 24V	Voltage - Primary	115V, 230V
Voltage - Isolation	4000Vrms	Type	Toroidal
Termination Style	Wire Leads	Size / Dimension	112.00mm Dia x 54.00mm W
Series	Chassis Mount: World Series™	Secondary Winding(s)	Dual
Primary Winding(s)	Dual	Power - Max	250 VA
Other Names	237-1353 VPT2410420	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	-
Current - Output (Max)	Parallel 20.84A, Series 10.42A	Center Tap	No
