Home > Products > Transformers > Power Transformers > VPT12-13300

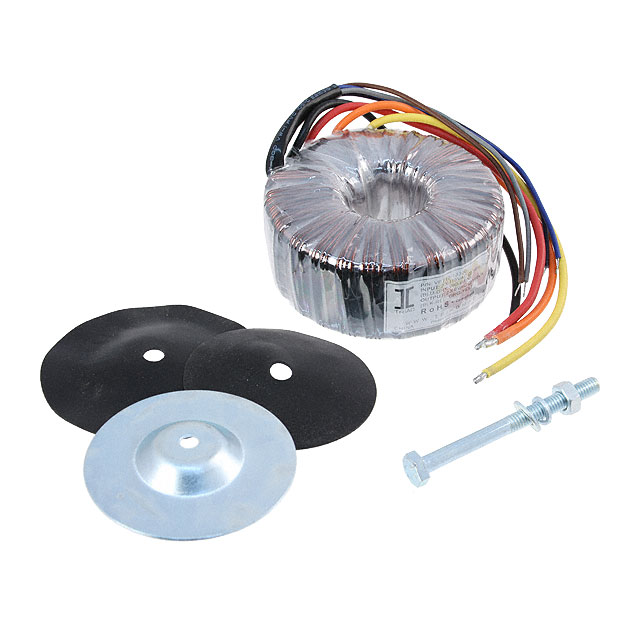

VPT12-13300

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VPT12-13300 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	VPT12-13300
Manufacturer	Triad Magnetics
Description	XFRMR TOROIDAL 160VA CHAS MOUNT
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 2306 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$16.205

Product parameter
Data sheet

Product parameter

Part Number	VPT12-13300	Manufacturer	Triad Magnetics
Description	XFRMR TOROIDAL 160VA CHAS MOUNT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2306 pcs	Data sheet	VPT12-13300
Category	Transformers	Weight	3.6 lbs (1.6kg)
Voltage - Secondary (Full Load)	Parallel 6V, Series 12V	Voltage - Primary	115V, 230V
Voltage - Isolation	4000Vrms	Type	Toroidal
Termination Style	Wire Leads	Size / Dimension	103.00mm Dia x 48.00mm W
Series	Chassis Mount: World Series™	Secondary Winding(s)	Dual
Primary Winding(s)	Dual	Power - Max	160 VA
Other Names	237-1343 VPT1213300	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	-
Current - Output (Max)	Parallel 26.6A, Series 13.3A	Center Tap	No
