Home > Products > Transformers > Power Transformers > VPT100-5000

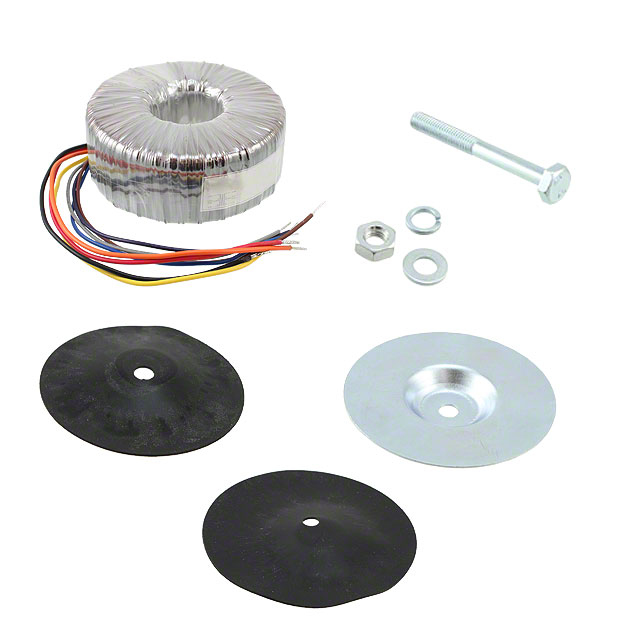

VPT100-5000

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VPT100-5000 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	VPT100-5000
Manufacturer	Triad Magnetics
Description	XFRMR TOROIDAL 500VA CHAS MOUNT
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1235 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
Reference Price (In US Dollars)	$34.055	$32.92	$30.65	$28.379

Product parameter
Data sheet

Product parameter

Part Number	VPT100-5000	Manufacturer	Triad Magnetics
Description	XFRMR TOROIDAL 500VA CHAS MOUNT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1235 pcs	Data sheet	VPT100-5000
Category	Transformers	Weight	9.3 lbs (4.2kg)
Voltage - Secondary (Full Load)	Parallel 50V, Series 100V	Voltage - Primary	115V, 230V
Voltage - Isolation	4000Vrms	Type	Toroidal
Termination Style	Wire Leads	Size / Dimension	140.00mm Dia x 60.00mm W
Series	Chassis Mount: World Series™	Secondary Winding(s)	Dual
Primary Winding(s)	Dual	Power - Max	500 VA
Other Names	237-1356 VPT1005000	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	-
Current - Output (Max)	Parallel 10A, Series 5A	Center Tap	No
