Home > Products > Transformers > Power Transformers > VPT100-25000

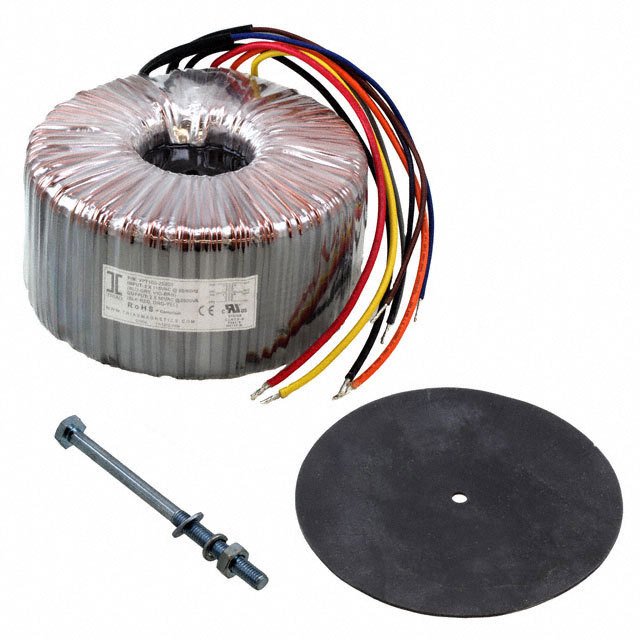

VPT100-25000

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VPT100-25000 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	VPT100-25000
Manufacturer	Triad Magnetics
Description	XFRMR TOROIDAL 2500VA CHAS MOUNT
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 375 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs
Reference Price (In US Dollars)	$114.003	$105.86	$101.788

Product parameter
Data sheet

Product parameter

Part Number	VPT100-25000	Manufacturer	Triad Magnetics
Description	XFRMR TOROIDAL 2500VA CHAS MOUNT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	375 pcs	Data sheet	VPT100-25000
Category	Transformers	Weight	43 lbs (19.5kg)
Voltage - Secondary (Full Load)	Parallel 50V, Series 100V	Voltage - Primary	115V, 230V
Voltage - Isolation	4000Vrms	Type	Toroidal
Termination Style	Wire Leads	Size / Dimension	208.00mm Dia x 112.00mm W
Series	Chassis Mount: World Series™	Secondary Winding(s)	Dual
Primary Winding(s)	Dual	Power - Max	2500 VA
Other Names	237-1625 VPT100-25000-ND	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	-
Current - Output (Max)	Parallel 50A, Series 25A	Center Tap	No
