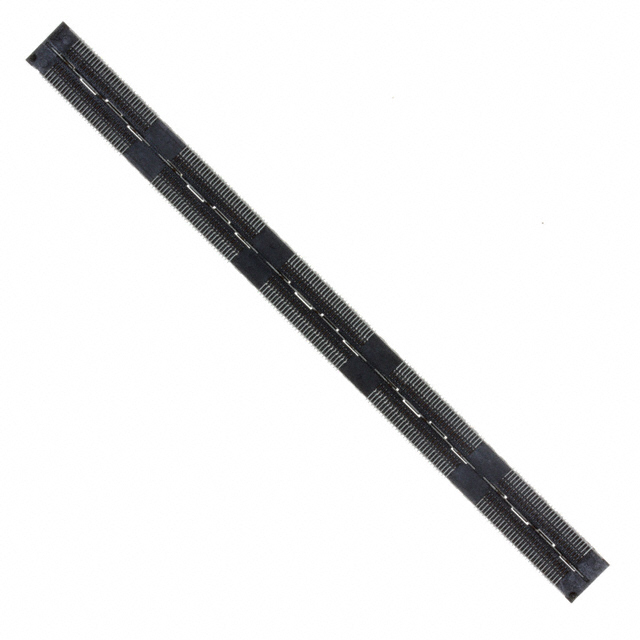

QSH-150-01-L-D-A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy QSH-150-01-L-D-A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy QSH-150-01-L-D-A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | QSH-150-01-L-D-A |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN RCPT HI-SPD .5MM 300POS DL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 24 pcs | 48 pcs | 72 pcs | |
|---|---|---|---|---|---|
| $6.518 | $6.284 | $6.052 | $5.935 | ||
| 120 pcs | 264 pcs | 504 pcs | |||
| $5.819 | $5.702 | $5.586 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | QSH-150-01-L-D-A | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN RCPT HI-SPD .5MM 300POS DL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6775 pcs | Data sheet | QSH Series DatasheetQSH-yyy-01-y-D-yyy DrawingQSH-yyy-01-y-D-yyy Footprint |
| Category | Connectors, Interconnects | Series | Q Strip® QSH |
| Pitch | 0.020" (0.50mm) | Packaging | Tray |
| Other Names | QSH15001LDA SAM8184 |
Number of Rows | 2 |
| Number of Positions | 300 | Mounting Type | Surface Mount |
| Mated Stacking Heights | 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height Above Board | 0.128" (3.25mm) |
| Features | Board Guide, Ground Bus (Plane) | Detailed Description | 300 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold |
| Contact Finish Thickness | 10.0µin (0.25µm) | Contact Finish | Gold |
| Connector Type | Receptacle, Center Strip Contacts |
