Home > Products > Transformers > Switching Converter, SMPS Transformers > ECO2420SEO-D02V019

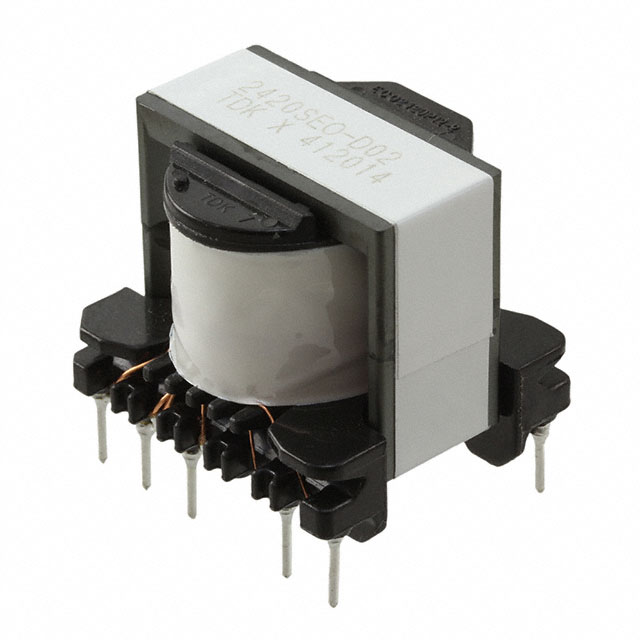

ECO2420SEO-D02V019

ECO2420SEO-D02V019

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ECO2420SEO-D02V019 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ECO2420SEO-D02V019
Manufacturer	TDK Corporation
Description	INDUCTOR/XFRMR
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 14995 pcs
Reference Price (In US Dollars)	25 pcs
Reference Price (In US Dollars)	$2.405

Product parameter
Data sheet

Product parameter

Part Number	ECO2420SEO-D02V019	Manufacturer	TDK Corporation
Description	INDUCTOR/XFRMR	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	14995 pcs	Data sheet	ECO Series
Category	Transformers	Voltage - Primary	85 ~ 138V
Voltage - Isolation	3000Vrms	Voltage - Auxiliary	12.3V @ 3.3A
Type	For AC/DC Converters	Size / Dimension	1.122" L x 0.945" W (28.50mm x 24.00mm)
Series	ECO	Packaging	Bulk
Other Names	445-16079	Operating Temperature	-30°C ~ 120°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Intended Chipset	-	Inductance @ Frequency	278µH @ 10kHz
Height - Seated (Max)	1.043" (26.50mm)	Frequency	33kHz
Footprint	1.122" L x 0.945" W (28.50mm x 24.00mm)	Chipset Manufacturer	-
Applications	Flyback Converters
