Home > Products > Transformers > Switching Converter, SMPS Transformers > ECO2020SEO-D09V015

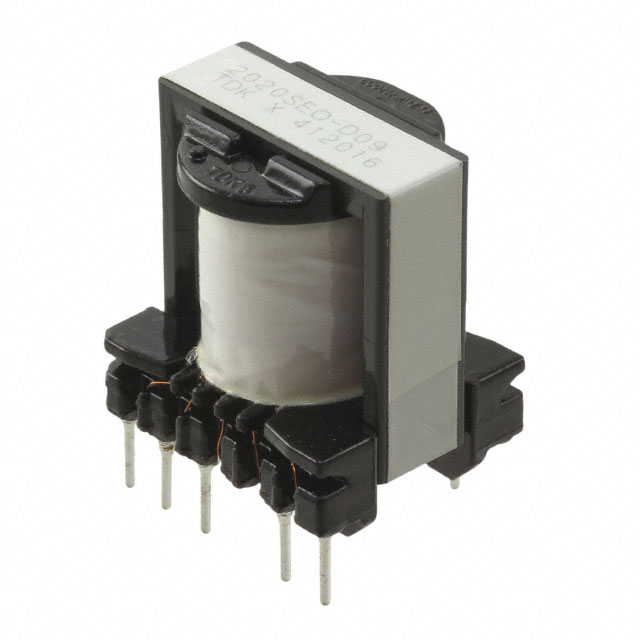

ECO2020SEO-D09V015

ECO2020SEO-D09V015

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ECO2020SEO-D09V015 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ECO2020SEO-D09V015
Manufacturer	TDK Corporation
Description	INDUCTOR/XFRMR
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 26303 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$2.542	$1.932	$1.882	$1.729
	$1.627	$1.576	$1.525	$1.475

Product parameter
Data sheet

Product parameter

Part Number	ECO2020SEO-D09V015	Manufacturer	TDK Corporation
Description	INDUCTOR/XFRMR	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	26303 pcs	Data sheet	ECO Series
Category	Transformers	Voltage - Primary	154 ~ 312V
Voltage - Isolation	2000Vrms	Voltage - Auxiliary	12V @ 500mA
Type	For AC/DC Converters	Size / Dimension	0.886" L x 0.768" W (22.50mm x 19.50mm)
Series	ECO	Packaging	Bulk
Other Names	445-16070	Operating Temperature	-30°C ~ 120°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Intended Chipset	-	Inductance @ Frequency	12.6mH @ 10kHz
Height - Seated (Max)	1.063" (27.00mm)	Frequency	-
Footprint	0.886" L x 0.768" W (22.50mm x 19.50mm)	Chipset Manufacturer	-
Applications	Flyback Converters
