Home > Products > Transformers > Switching Converter, SMPS Transformers > ECO2425SEO-D03V014

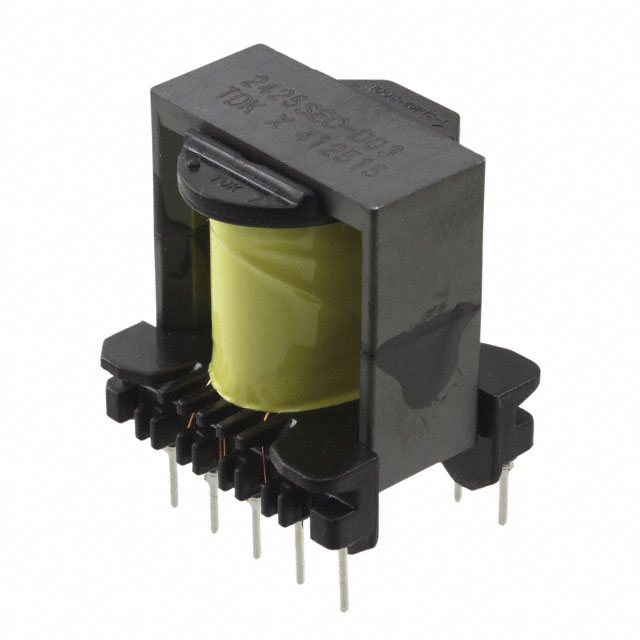

ECO2425SEO-D03V014

ECO2425SEO-D03V014

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ECO2425SEO-D03V014 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ECO2425SEO-D03V014
Manufacturer	TDK Corporation
Description	INDUCTOR/XFRMR
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 12797 pcs
Reference Price (In US Dollars)	25 pcs
Reference Price (In US Dollars)	$2.423

Product parameter
Data sheet

Product parameter

Part Number	ECO2425SEO-D03V014	Manufacturer	TDK Corporation
Description	INDUCTOR/XFRMR	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12797 pcs	Data sheet	ECO Series
Category	Transformers	Voltage - Primary	170 ~ 230V
Voltage - Isolation	1500Vrns	Voltage - Auxiliary	36.5V @ 900mA
Type	For AC/DC Converters	Size / Dimension	1.122" L x 0.945" W (28.50mm x 24.00mm)
Series	ECO	Packaging	Bulk
Other Names	445-16084	Operating Temperature	-30°C ~ 120°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Intended Chipset	-	Inductance @ Frequency	2.8mH @ 10kHz
Height - Seated (Max)	1.240" (31.50mm)	Frequency	30kHz
Footprint	1.122" L x 0.945" W (28.50mm x 24.00mm)	Chipset Manufacturer	-
Applications	Flyback Converters
