Home > Products > Transformers > Switching Converter, SMPS Transformers > ECO2425SEO-D01V019

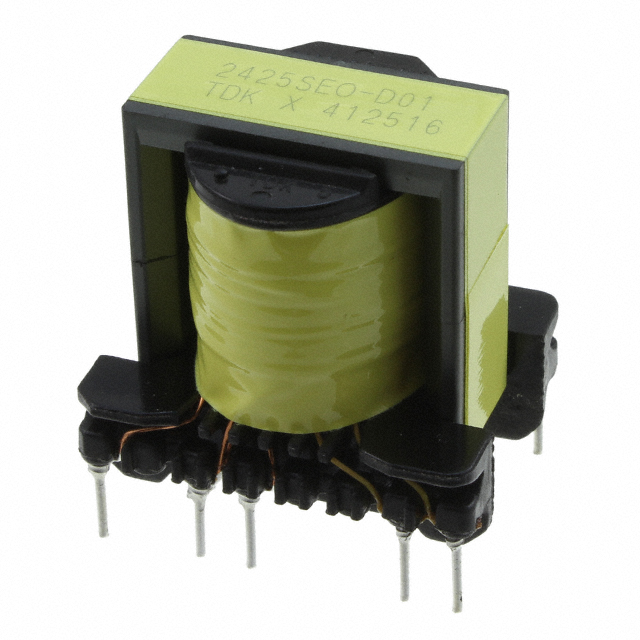

ECO2425SEO-D01V019

ECO2425SEO-D01V019

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ECO2425SEO-D01V019 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ECO2425SEO-D01V019
Manufacturer	TDK Corporation
Description	INDUCTOR/XFRMR
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 14254 pcs
Reference Price (In US Dollars)	30 pcs
Reference Price (In US Dollars)	$2.39

Product parameter
Data sheet

Product parameter

Part Number	ECO2425SEO-D01V019	Manufacturer	TDK Corporation
Description	INDUCTOR/XFRMR	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	14254 pcs	Data sheet	ECO Series
Category	Transformers	Voltage - Primary	264 ~ 373V
Voltage - Isolation	1250Vrms	Voltage - Auxiliary	5V @ 140mA, 12.7V @ 1.18A, 20V @ 50mA, 20V @ 70mA
Type	For AC/DC Converters	Size / Dimension	1.400" L x 0.984" W (35.50mm x 25.00mm)
Series	ECO	Packaging	Bulk
Other Names	445-16082	Operating Temperature	-30°C ~ 120°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Intended Chipset	-	Inductance @ Frequency	1.06mH @ 10kHz
Height - Seated (Max)	1.240" (31.50mm)	Frequency	100kHz
Footprint	1.400" L x 0.984" W (35.50mm x 25.00mm)	Chipset Manufacturer	-
Applications	Flyback Converters
